Cooper&Hunter | Mini-split system SUPREME Series (Gold) CH-S09FTXAM2S-GD

Catalog preferences

Mini-split system SUPREME Series (Gold) CH-S09FTXAM2S-GD

cooling	2,70 (0,70-5,00) kW
Heating	3,50 (0,70-5,50) kW

Find out the price

Heat pump. Designed for efficient heating in a cold climate of Northern Europe.
Modern two-stage inverter compressor efficiently operates in the temperature range -30°С - +54°C;
Option of heating start at temperature +8°C;
«CH SMART-ION Filter» - new generation of air cleaning technology.
Wi-Fi module for easy remote control via smartphone (Android and iOS support)
Compliance to EU Directive for ErP (Energy related Products) № 626/2011/EU from 1-01-2013 for consumer heat pumps and air conditioner with SEER A+++ SCOP A+++;
Record low noise level 18db. Whole plastic body, seamless heat exchanger
Higher class of energy efficiency. Energy saving equipment by type A+++ Class Energy Efficiency — Generation V
Stylish and compact design
Uninterruptable operation under input voltage range 96V – 260V. Innovative compact transformer.
Multispeed ventilator
Increased resouce

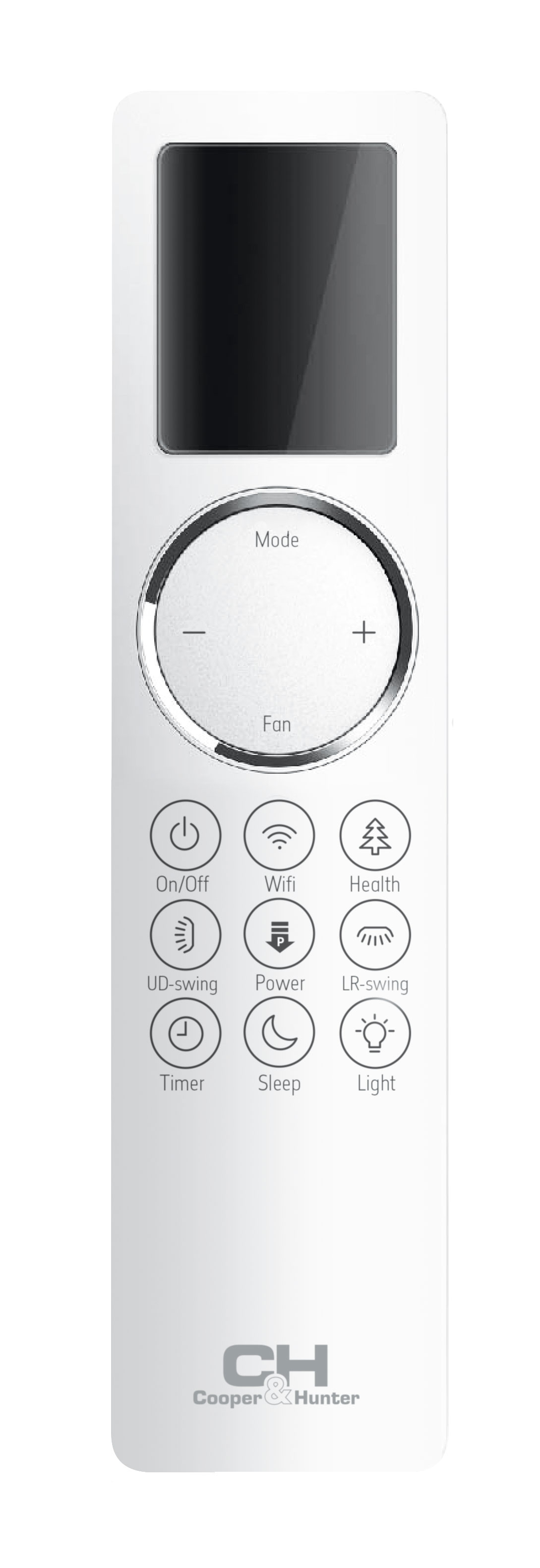

Time indicator on remote control
Ozone friendly R32 freon
Self-cleaning of indoor units. Ventilator continues operation after air conditioner stops and removes water from heat exchanger to avoid formation of fungus, molds and bacteriaю
Choice of filters for indoor unit: carbon "Anti-smell"; "Antibacterial suppressor"; "Nano-titanium antichemical catalyst"; Electret Dust Collector Filter; Catechin filter. Any two filters can be installed the same time.
Electrostatic air filter ЕСО-FRESH;
Covenient LED display on indoor unit. Can be deactivated by remote control.
Several modes for comfort sleep.
Intelligent AUTO mode – automatic change of working mode depending on temperature change.
24-hours timer on-off.
Deferred ventilator start to avoid cold air flow in heating mode.
Antibacterial treatment of remote control.
Anticorrosion treatment of heat exchanger GREEN-FIN
Autorestart. Automatic saving last settings.
Intelligent defrosting system.
Manual switch of on/off defrosting by remote control.
Power stabilizing for safe low-voltage start.
Self-diagnostic of main components and working modes
Blocking of control

Standard features

Specifications

Capacity	Cold	kW	2,70 (0,70-5,00)
Capacity	Warm	kW	3,50 (0,70-5,50)
Electric power supply			~ 220-240В/50Hz/1Ph
Rated input	Cold	kW	0,55 (0,08-1,80)
Rated input	Warm	kW	0,75 (0,13-2,40)
SEER - Seasonal coefficient of performance	Cooling		8,5(А+++)
SCOP - seasonal coefficient of performance	Heating		5,7(А+++)
Air productive capacity		m³/h	430/500/560/620/670/720/800
Sound-pressure level	Indoor unit	dB(A)	18/22/26/30/34/38/43
Sound-pressure level	Outdoor unit	dB(A)	53
Type of refrigerant coolant			R-32
Dimensions	Indoor unit	mm	996х301х225
Dimensions	Outdoor unit	mm	899х596х378
Weight	Indoor unit	kg	13
Weight	Outdoor	kg	44,5
Compressor type			rotor
Drainage		l/h	0,8
Operational temperature range	Cooling	°C	-18...+54
Operational temperature range	Heating	°C	-30...+24
Gas charge volume		kg	1,0
Liquid pipeline diameter		mm/inch	6,38/1/4"
Gas pipeline diameter		mm/inch	9,53/3/8"
Maximum pipeline level difference		m	10
Pipeline maximum length		m	15

Documents

SUPREME OWNER’S MANUAL (EN)

SUPREME OWNER’S MANUAL (UA)

Video

Video reviews

Відеоогляд кондиціонера Cooper&Hunter серії Supreme (UA)
