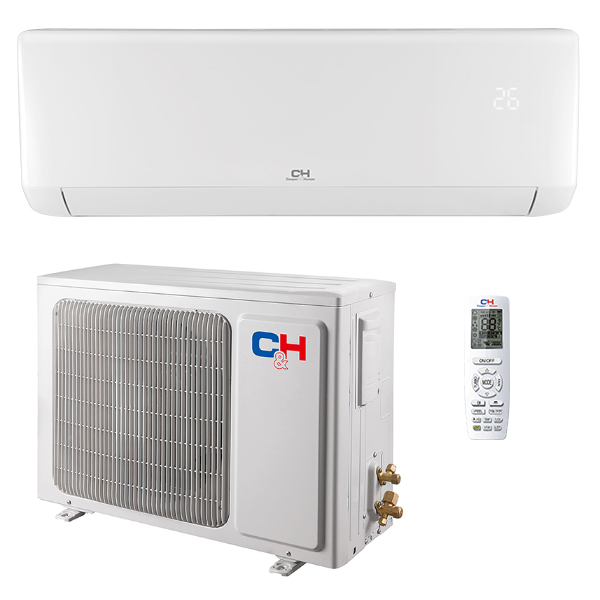

Mini-split system Prima Plus Series CH-S12XN7

C&H Image
C&H Image
C&H Image
C&H Image
C&H Image
C&H Image
C&H Image
C&H Image
cooling 3,25 kW
Heating 3,40 kW
Find out the price
  • "CH SMART-ION Filter" - a new generation of total air purification technology;
  • Designed for professional installations;
  • Home protection from icing + 8 °C;
  • Self-cleaning of the indoor unit. After stopping the operation of the air conditioner, the fan does not stop and removes moisture from the heat exchanger, which excludes the formation of mold, fungi and the growth of bacteria inside the unit;
  • Special function of the temperature control "I FEEL";
  • Extra low noise level 24 dB;
  • Energy efficiency class A;
  • Intelligent defrosting;

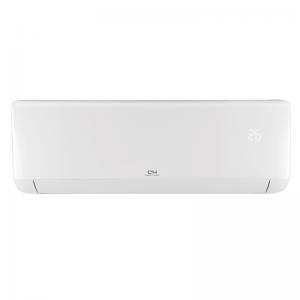

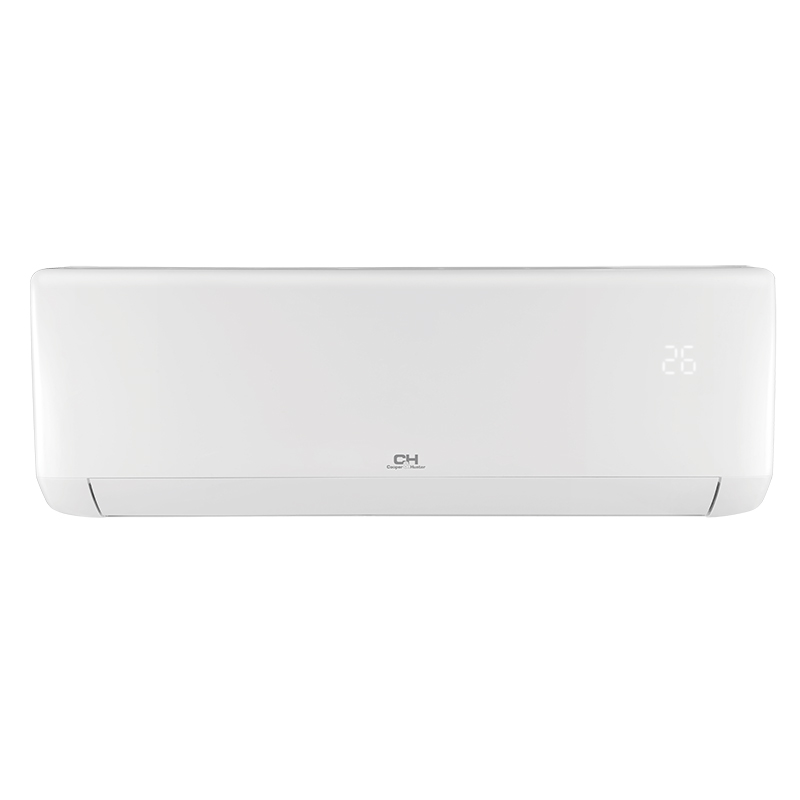

  • Innovative modern design of the indoor unit;

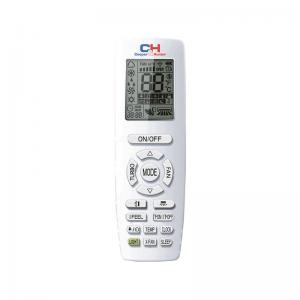

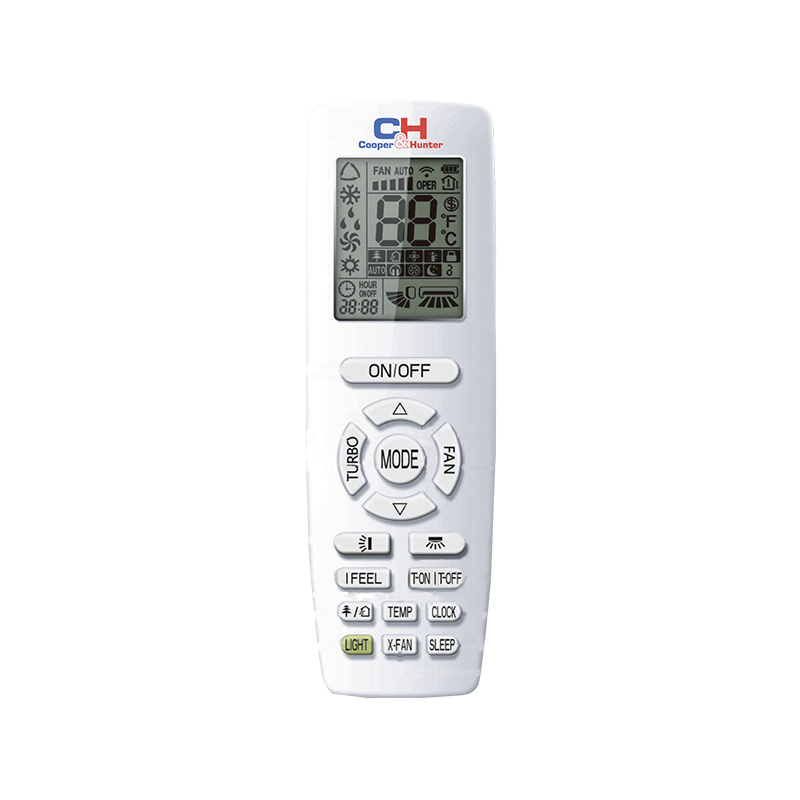

  • Remote control with a convenient LED display;
  • Display of the current time of day on the remote control;
  • 1V consumption in the "Standby" mode;
  • Ozone-safe high-performance R410 freon;
  • Compact hi-tech design. Width 698 mm;
  • Wide-angle jalousie cover the entire room with SWING automatic air distribution. Nine different options for vertical jalousie positions, set with the remote control;
  • Self-cleaning and dehumidification of the indoor unit. Automatic removal of moisture from the heat exchanger. Prevents the formation of mold, fungi and the growth of bacteria inside the unit;
  • SLЕЕР mode for comfortable sleep;
  • Intelligent control by AUTO mode - automatic change of operating modes depending on changes in room temperature;
  • 24-hour timer for switching on and off;
  • Turbo mode. One-touch on/off of the maximum fan speed for intensive cooling or heating of indoor air;
  • Delay in starting of the fan in order to exclude cold air blowing;
  • Function of reducing humidity without lowering the temperature;

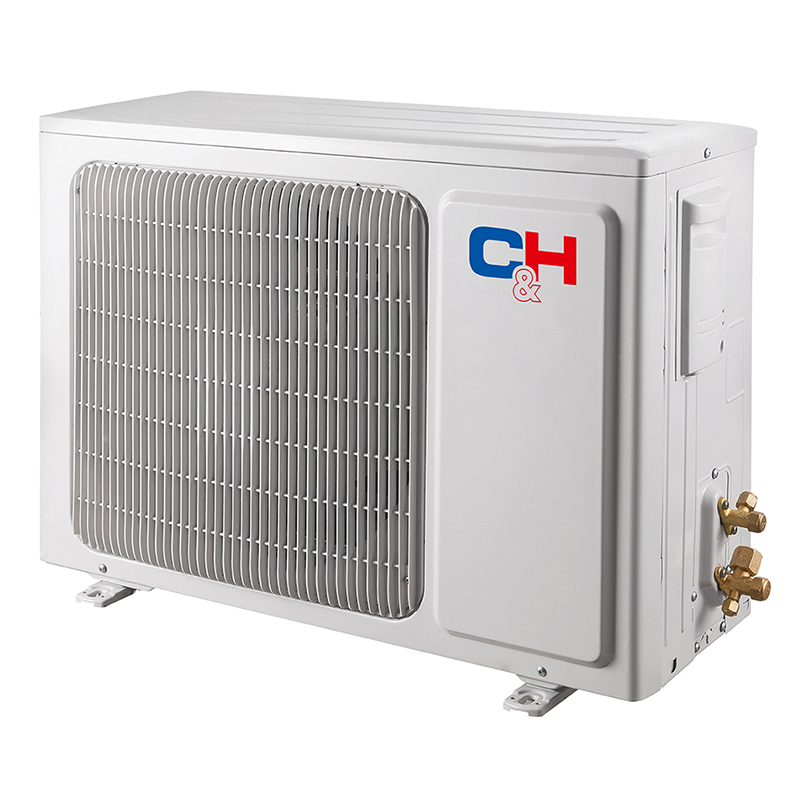

  • Anti-corrosive coating of the external unit;
  • Function of maintaining temperature 8 °C;
  • Antibacterial coating of the remote control;
  • Heat exchanger with anti-corrosion coating GREEN-FIN;
  • Function of automatic restart with memorization of settings;
  • Automatic anti-icing system;
  • Forced activation/deactivation of the defrosting function from the remote control;
  • Voltage stabilization and safe low-voltage start system;
  • Self-diagnosis of malfunctions of the main units and modes;
  • Locking control.

Standard features

Class A
CH SMART-ION Filter
Function 8C
I-FEEL
LED display
Auto-swing louver
24hr timer mode
Auto-restart
Super silent
Sleep
R410A
Dehumidification function
Anticorrosion GREEN-FIN
Intelligent defrost function
Self-diagnosis error protection
Auto-protection

Specifications

Capacity Cold kW 3,25
Warm kW 3,40
Electric power supply ~ 220-240V/50Hz/1F
Rated input Cold kW 0,98
Warm kW 0,93
Energy performance EER (cold) kW/kW 3,33
C.O.P. (warm) kW/kW 3,64
Air productive capacity m³/h 550
Sound-level Indoor unit (А) 29/33/35
Outdoor unit dB (A) 50
Type of refrigerant coolant R-410a
Dimensions Indoor unit mm 773х250х185
Outdoor unit mm 776Х540Х320
Weight Indoor unit kg 8,5
Outdoor unit kg 30
Drainage l/h 1,20
Operational temperature range Cooling °C +18... +43
Heating °C -7... +24
Gas charge volume kg 0,72
Diameter of liquid highway mm/inch 6,38/1/4"
Diameter of gas highway mm/inch 12,7/1/2"
Maximal overfall of height of highway m 10
Maximal length of highway m 15
Distance between the bolts of the outdoor unit fastening mm 440
