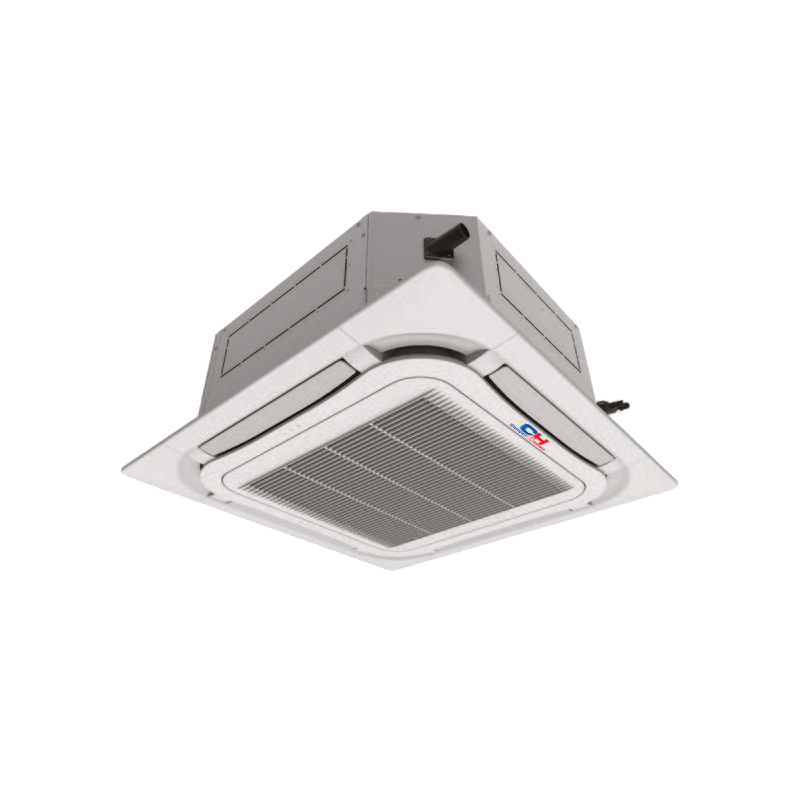

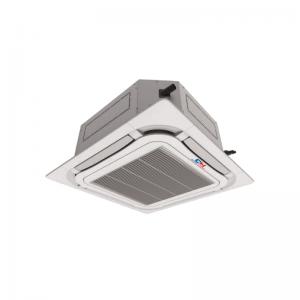

Nordic Commercial Series R Cassette Type (Inverter) CH-IC035RK/CH-IU035RK

cooling 3.5 kW
Heating 4.0 kW
Find out the price
  • Simple installation
  • Compact overall dimensions
  • Low noise fan;
  • Long life cycle washable filter;
  • Drain pump;
  • Self-testing of main units and modes to identify malfunctions;
  • Multi-level system protection.
  • Pipeline length is up to 75 m (for high power models);
  • The possibility of selecting an indoor air temperature sensor for controlling.

Standard features

A+
Inverter
Function 8C
I-FEEL
Auto-swing louver
24hr timer mode
Auto-restart
Super silent
Sleep
R32
Multi-speed fan
Dehumidification function
Intelligent defrost function
Self-diagnosis error protection
Auto-protection

Specifications

Capacity Cooling kW 3,50
Heating kW 4,00
Electric power supply ~220-240 V/50 Hz/1 Ph
Rated input Cooling kW 1,00
Heating kW 1,05
Energy performance Cooling EER 3,50
Heating COP 3,81
Air flow Indoor unit m³/h 650
Sound-pressure level Indoor unit dB (A) 44/39/36/33
Outdoor unit dB (A) 50
Type of refrigerant coolant R32
Volume of refrigerant coolant kg 0,78
Weight Indoor unit kg 17
Panel kg 3
Outdoor unit kg 37
Operational temperature range Cooling °C -20~48
Heating °C -20~24
Liquid piepeline diameter mm/inch 6,38/1/4"
Gas piepeline diameter mm/inch 9,53/3/8"
Maximum piepeline level difference m 15
Pipeline maximum length m 30
Number of interblock strands (for control)   mm² 2х0,75
Main power supply area Outdoor unit
Number of the strands (power supply) Indoor unit 3 (∅ 1,0mm²)
Outdoor unit 3 (∅ 1,5mm²)
Factory Freon fill ( for the number of the running meters) m 5
Freon per one running meter (surplus. for one running meter) g/m 16
SEER/SCOP 5,90/-
Energy performance class А+/-
