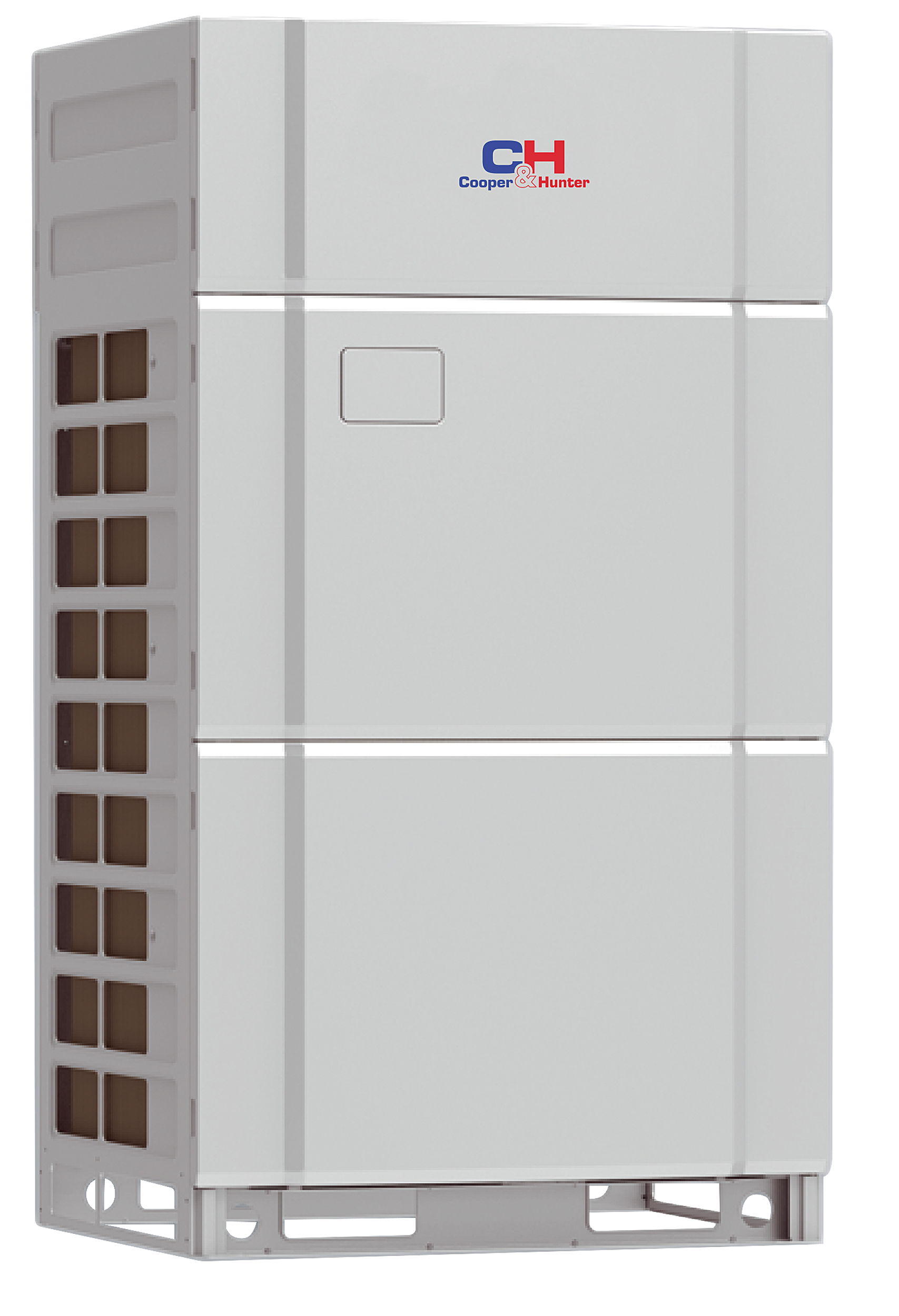

CHV6 CHV6-280NMX

cooling 28,00 kW
Heating 31,50 kW
Find out the price

  • Capacity to connect up to 100 indoor units
  • Increased power range from 22.4 to 68 kW
  • Distributed remote central control system
  • Control via protocols: modbus\KNS\BACNET\modbus mini
  • Intelligent billing system

Specifications

Parameter  CHV6-280NMX
Cooling capacity  28,00
Heating capacity  31,50
Maximum power consumption 13,15
SEER 6,85
SCOP 5,51
Refrigerant type  R410A
Maximum current  23,50
Power supply parameters ~380-415В/50Гц/3Ф
Dimensions (WxDxH) 930x775x1690
Net weight 220
Sound pressure level  57
Water pipe diameter 9,52
Freon pipe diameter  22,2
External static pressure fan unit (in case heat needs to be removed from the unit) 0-110
