VRF

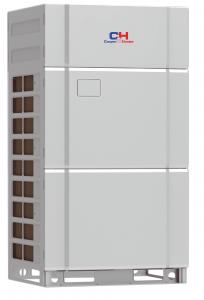

CHV6

CHV6

Capacity to connect up to 100 indoor units

Increased power range from 22.4 to 68 kW

Distributed remote central control system

Control via protocols: modbus\KNS\BACNET\modbus mini

Intelligent billing system

New type of compressor that increases cooling capacity by 10% and heating capacity by 30%

Dual EEV enthalpy control

Multiple EEV flow control technology

Improved heat exchanger with 8% increased heat exchange

Increased operating range: -30℃-52℃

5dB(A) reduction in compressor noise thanks to insulation


CHV6-224NMX
  • cooling:22,40 kW
  • Heating:25,00 kW
CHV6-280NMX
  • cooling:28,00 kW
  • Heating:31,50 kW
CHV6-335NMX
  • cooling:33,50 kW
  • Heating:27,50 kW
CHV6-400NMX
  • cooling:40,00 kW
  • Heating:45,00 kW
CHV6-450NMX
  • cooling:45,00 kW
  • Heating:50,00 kW
CHV6-504NMX
  • cooling:50,40 kW
  • Heating:56,50 kW
CHV6-560NMX
  • cooling:56,00 kW
  • Heating:63,00 kW
CHV6-615NMX
  • cooling:61,00 kW
  • Heating:69,00 kW

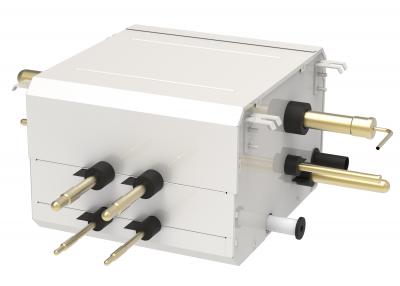

CHV6 HR mode matching units

CHV6 HR mode matching units

Coordinates the operation of modes between external and internal units

HR6B1NK...HR6BS8NK
  • cooling:16..85 kW

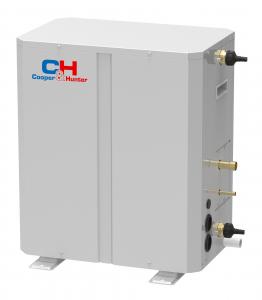

Hydro box CHV6 HR

Hydro box CHV6 HR

Heating water for heating systems and hot water supply

HB6-16NK..HB6-30NK
  • Heating:4.5(3.6~16)
    4.5(3.6~30) kW

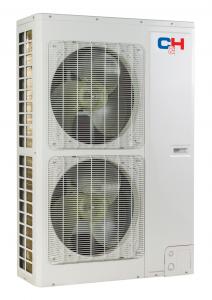

CHV Solar Mini

CHV Solar Mini

 • By adopting advanced photovoltaic direct-driven technology, the system can achieve power generation by utilizing solar power while consuming electricity and ensure utilization of photovoltaic power in priority;

 • Compared with traditional photovoltaic system, energy wastage during multiple commutation of alternating current and direct current is eliminated, with energy efficiency improved by 6 % - 8 % and photovoltaic utilization ratio up to 99 %;

 • Besides, the innovative MPPT (Maximum Power Point Tracking) technology can track and control the maximum power point status of photovoltaic power generation, so as to achieve maximum utilization of photovoltaic power

CHV-PV120NK
  • cooling:12.1 kW
  • Heating:14 kW
CHV-PV140NK
  • cooling:14 kW
  • Heating:16 kW
CHV-PV160NK
  • cooling:16 kW
  • Heating:18 kW
