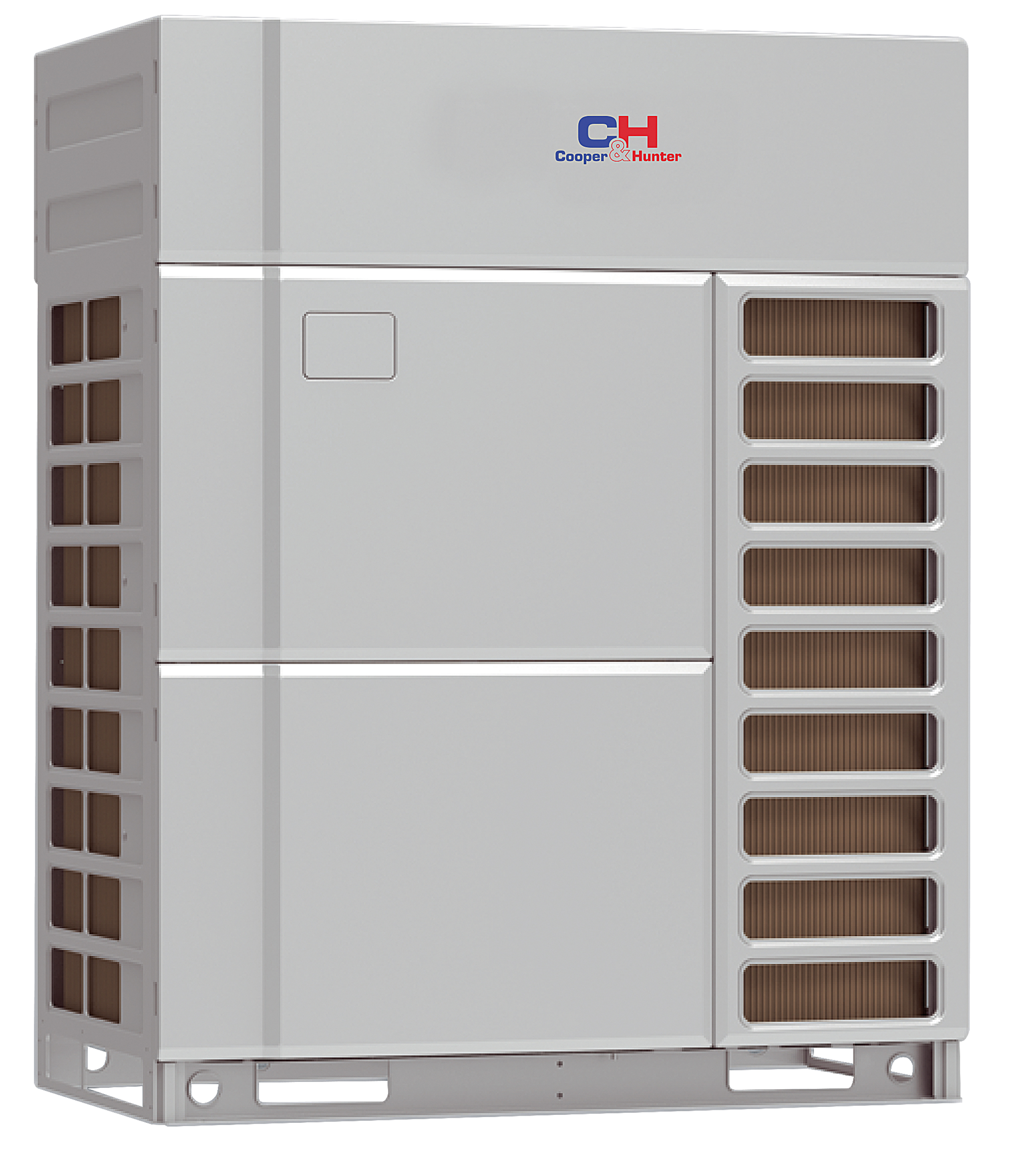

CHV6 CHV6-560NMX

cooling 56,00 kW
Heating 63,00 kW
Find out the price

  • Capacity to connect up to 100 indoor units
  • Increased power range from 22.4 to 68 kW
  • Distributed remote central control system
  • Control via protocols: modbus\KNS\BACNET\modbus mini
  • Intelligent billing system

Specifications

Parameter  CHV6-560NMX
Cooling capacity 56,00
Heating capacity  63,00
Maximum power consumption  26,85
SEER 6,32
SCOP 4,13
Refrigerant type R410A
Maximum current 48,00
Power supply parameters ~380-415V/50Hz/3ph
Dimensions (WxDxH) 1340х775х1690
Net weight 350
Sound pressure level  62
Water pipe diameter 15,9
Freon pipe diameter 28,6
External static pressure fan unit (in case heat needs to be removed from the unit) 0-110
