Model line
HB6-16NK..HB6-30NK

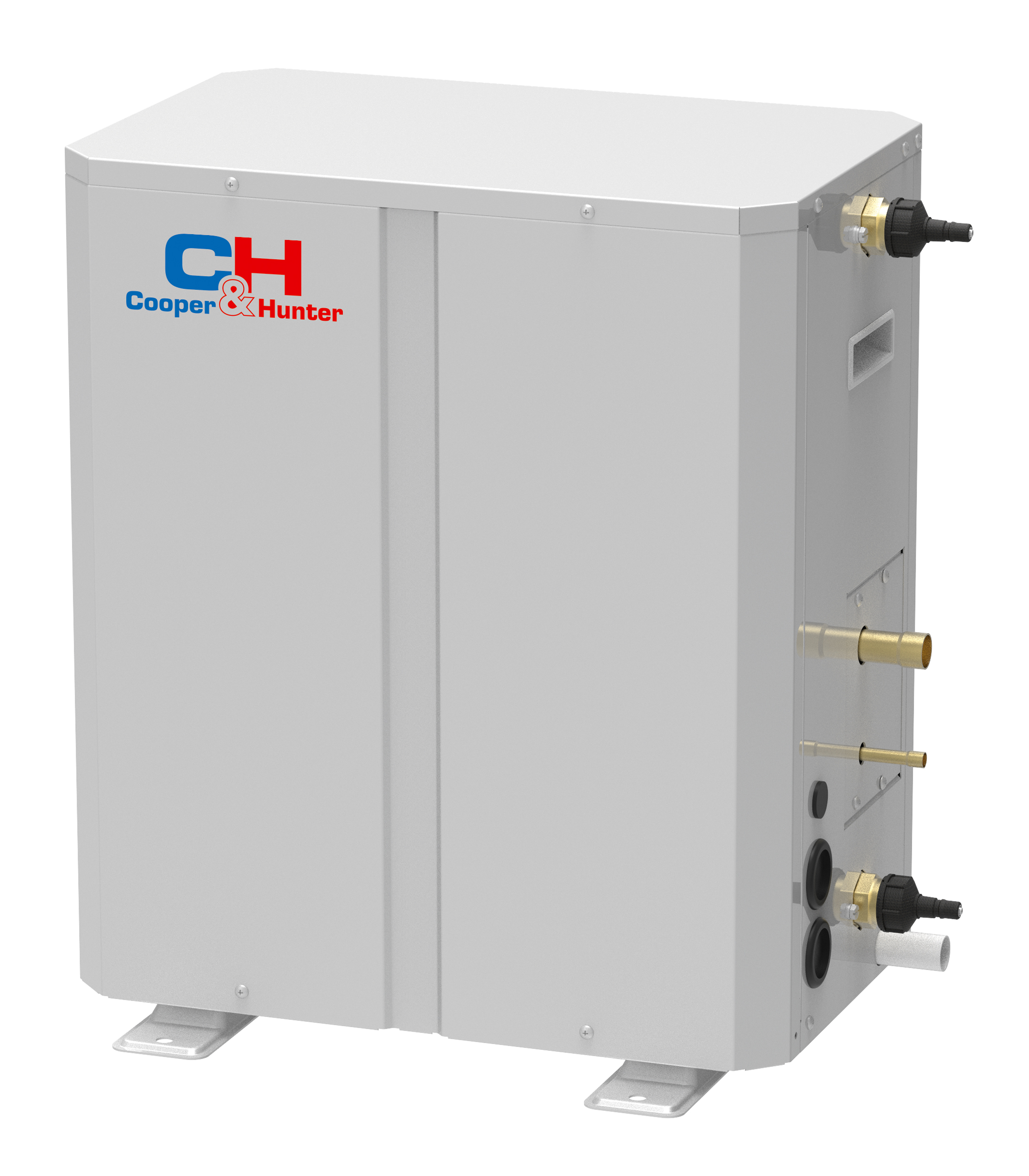

Hydro box CHV6 HR HB6-16NK..HB6-30NK

Water heating for heating and hot water supply systems for CHV 6 HR systems

C&H Image
C&H Image
Heating 4.5(3.6~16)
4.5(3.6~30) kW
Find out the price

Specifications

Unit

HB6-16NK HB6-30NK
HWS heat output
kW 4.5(3.6~16) 4.5(3.6~30)
HWS temperature range
°C 55(35~55) 55(35~55)
Heating heat output
kW 16 30
Heating temperature range
°C 45(25~45) 45(25~45)
Power supply
- 220-240/1/50 220-240/1/50
Automatic switch
А 6 6
Minimum power cable cross-section (cross-section mm2 × number of cores)

1.5х3 1.5х3
Heat exchanger type
Plate Plate
Heat exchanger qty
1 1
Heat exchanger Flow rate  l/min 46 86
Heat exchanger pressure drop kPa 27.5 38.5
Water connection pipe inlet/outlet
m 1" ЗР 1" ЗР
Pipe diameter liquid mm Φ9.52 Φ9.52
Pipe diameter gas mm Φ15.9 Φ22.2
Dimensions (W×D×H)
mm 515×330×606 515×330×606
Net/gross weight
kg 36/42.5 40/47
