Catalog preferences

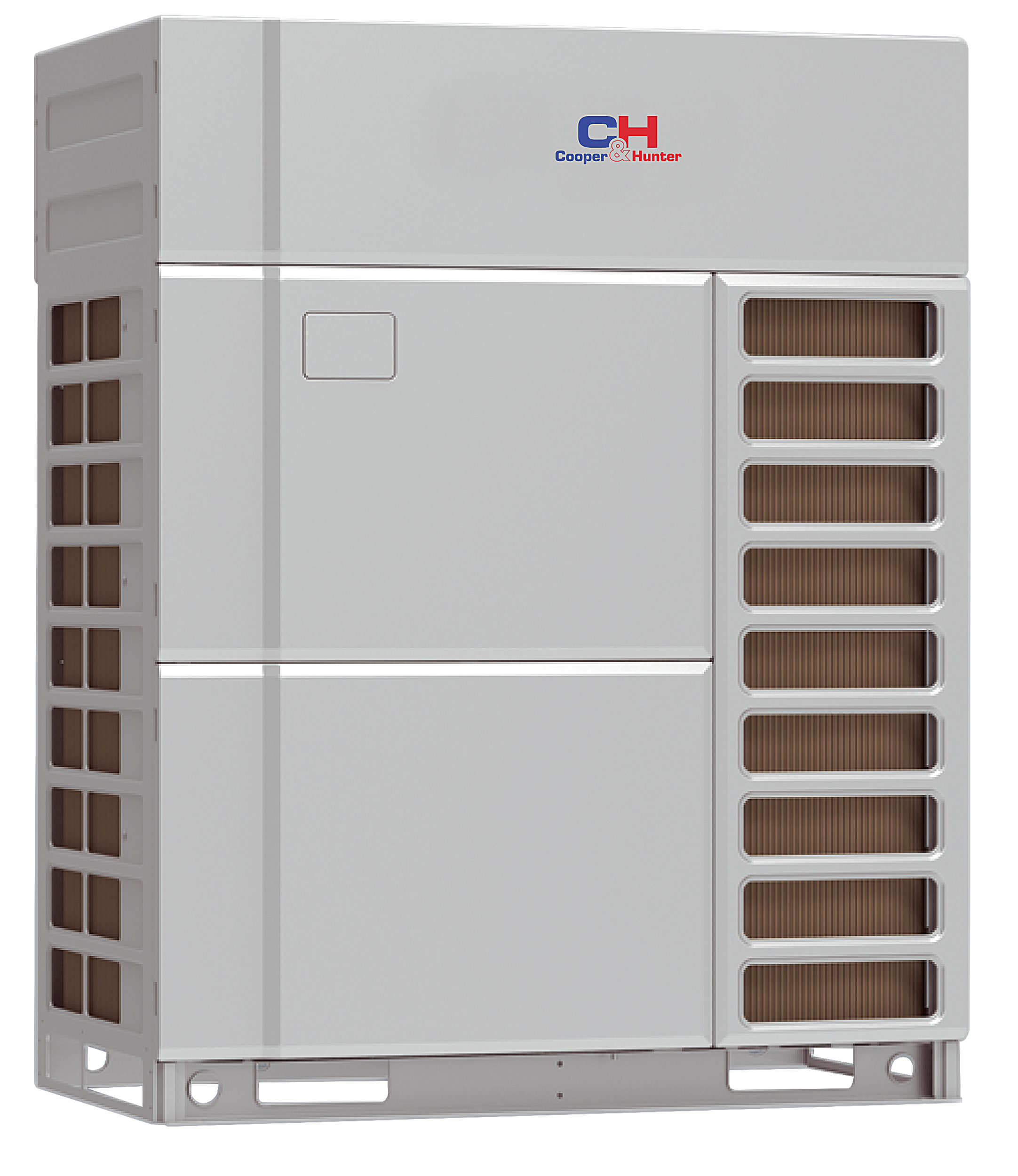

CHV6 CHV6-615NMX

cooling 61,00 kW
Heating 69,00 kW
Find out the price

  • Capacity to connect up to 100 indoor units
  • Increased power range from 22.4 to 68 kW
  • Distributed remote central control system
  • Control via protocols: modbus\KNS\BACNET\modbus mini
  • Intelligent billing system

Specifications

Parameter  CHV6-615NMX
Cooling capacity 61,00
Heating capacity 69,00
Maximum power consumption 27,41
SEER 5,74
SCOP 4,32
Refrigerant type R410A
Maximum current 48,00
Power supply parameters ~380-415V/50Hz/3ph
Dimensions (WxDxH)  1340х775х1690
Net weight  355
Sound pressure level 63
Water pipe diameter  15,9
Freon pipe diameter 28,6
External static pressure fan unit (in case heat needs to be removed from the unit) 0-110
