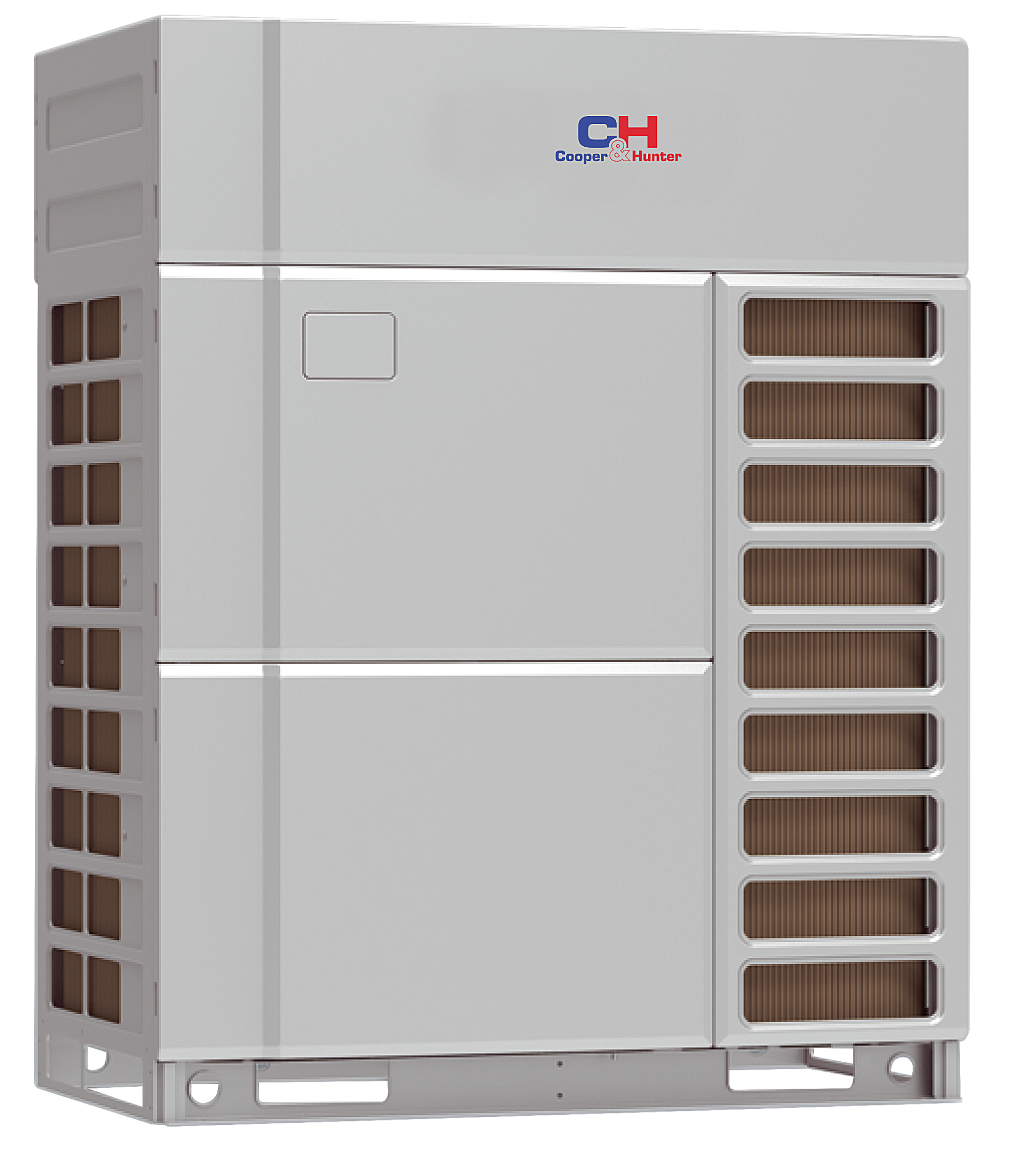

CHV6 CHV6-400NMX

cooling 40,00 kW
Heating 45,00 kW
Find out the price

  • Capacity to connect up to 100 indoor units
  • Increased power range from 22.4 to 68 kW
  • Distributed remote central control system
  • Control via protocols: modbus\KNS\BACNET\modbus mini
  • Intelligent billing system

Specifications

Parameter CHV6-400NMX
Cooling capacity  40,00
Heating capacity 45,00
Maximum power consumption 21,00
SEER 6,89
SCOP 5,15
Refrigerant type  R410A
Maximum current 37,50
Power supply parameters ~380-415V/50Hz/3ph
Dimensions (WxDxH) 1340х775х1690
Net weight 300
Sound pressure level 59
Water pipe diameter  12,7
Freon pipe diameter    25,4
External static pressure fan unit (in case heat needs to be removed from the unit)  0-110
