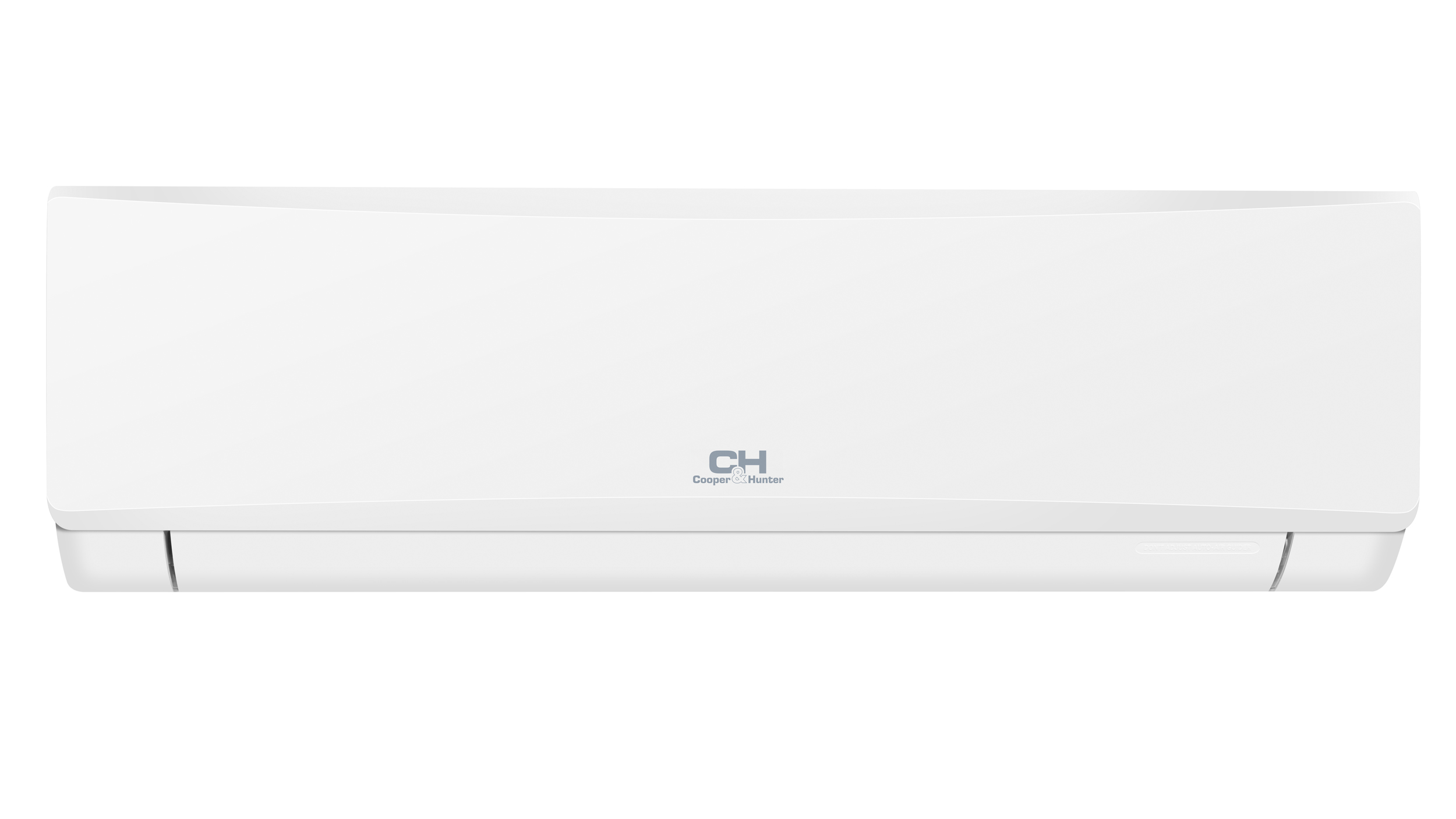

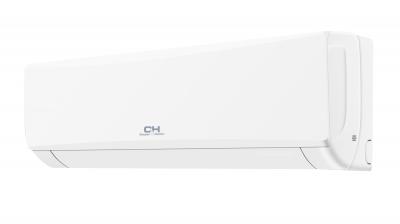

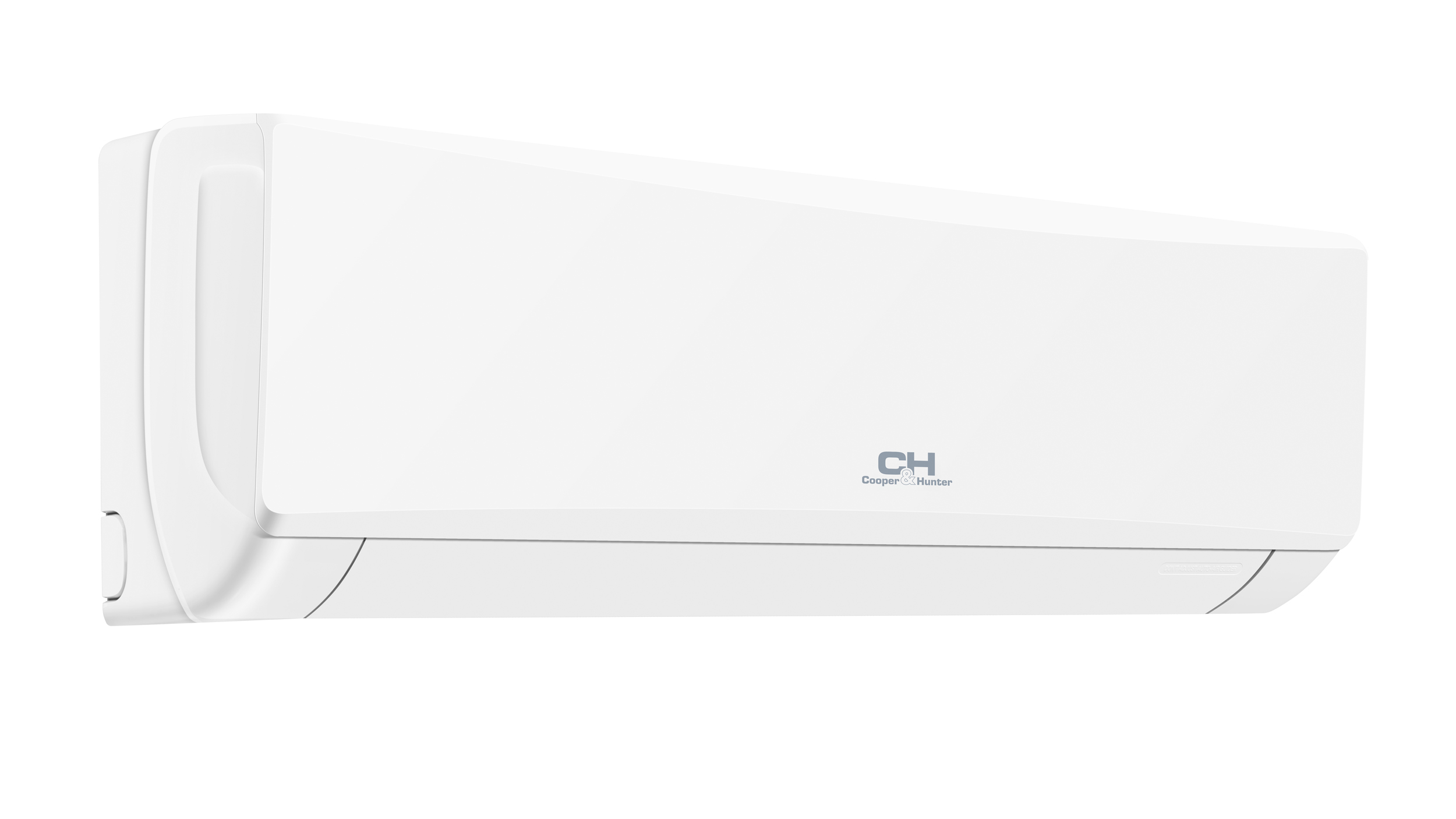

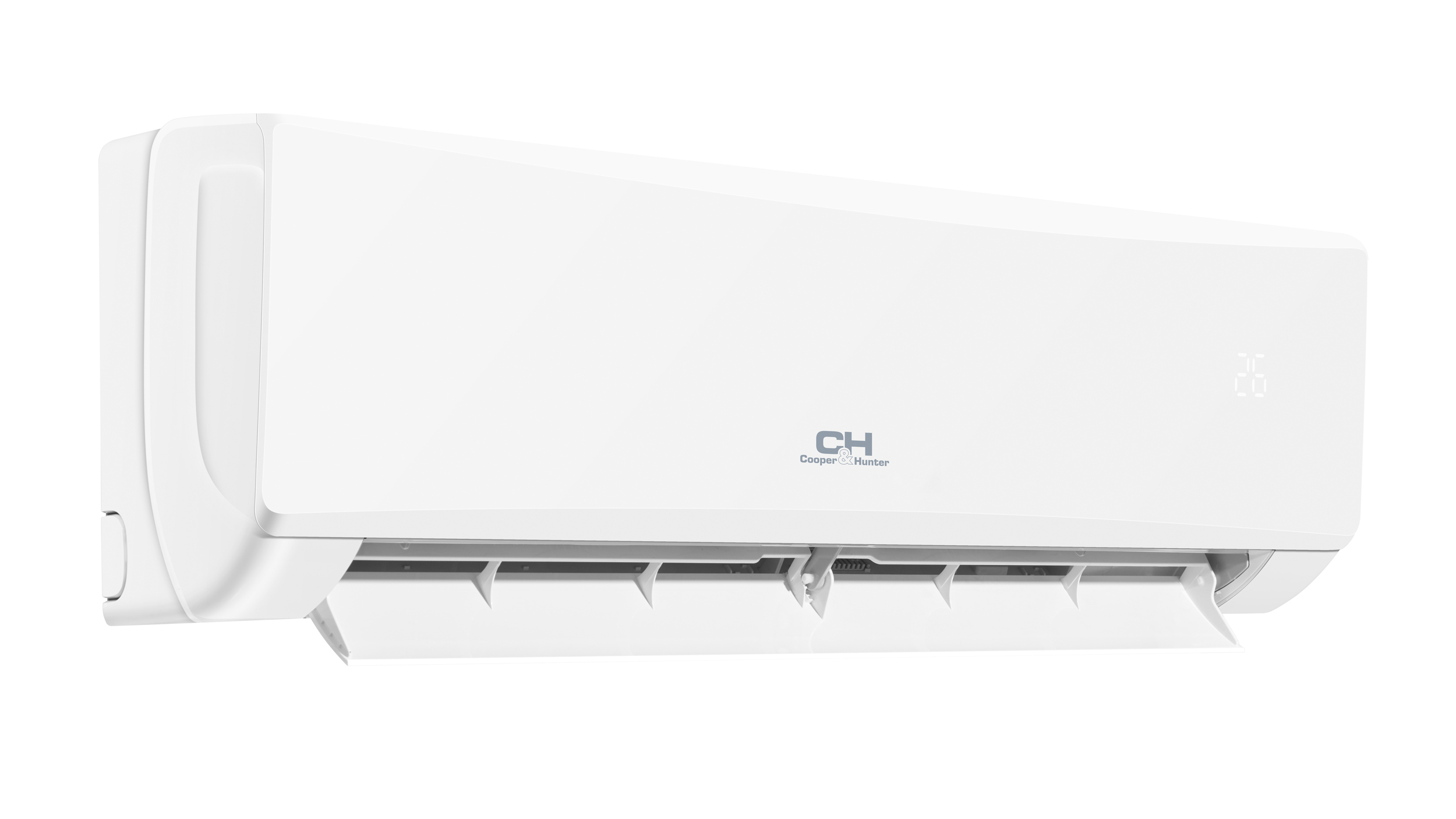

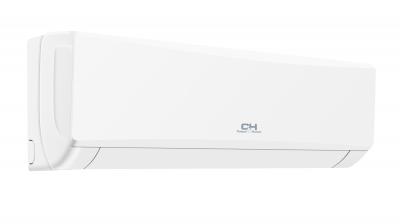

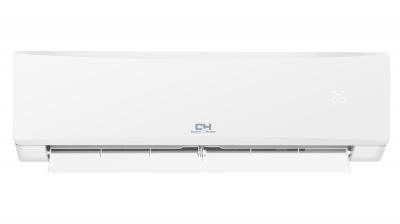

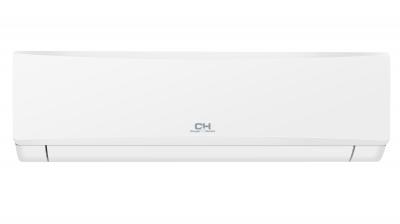

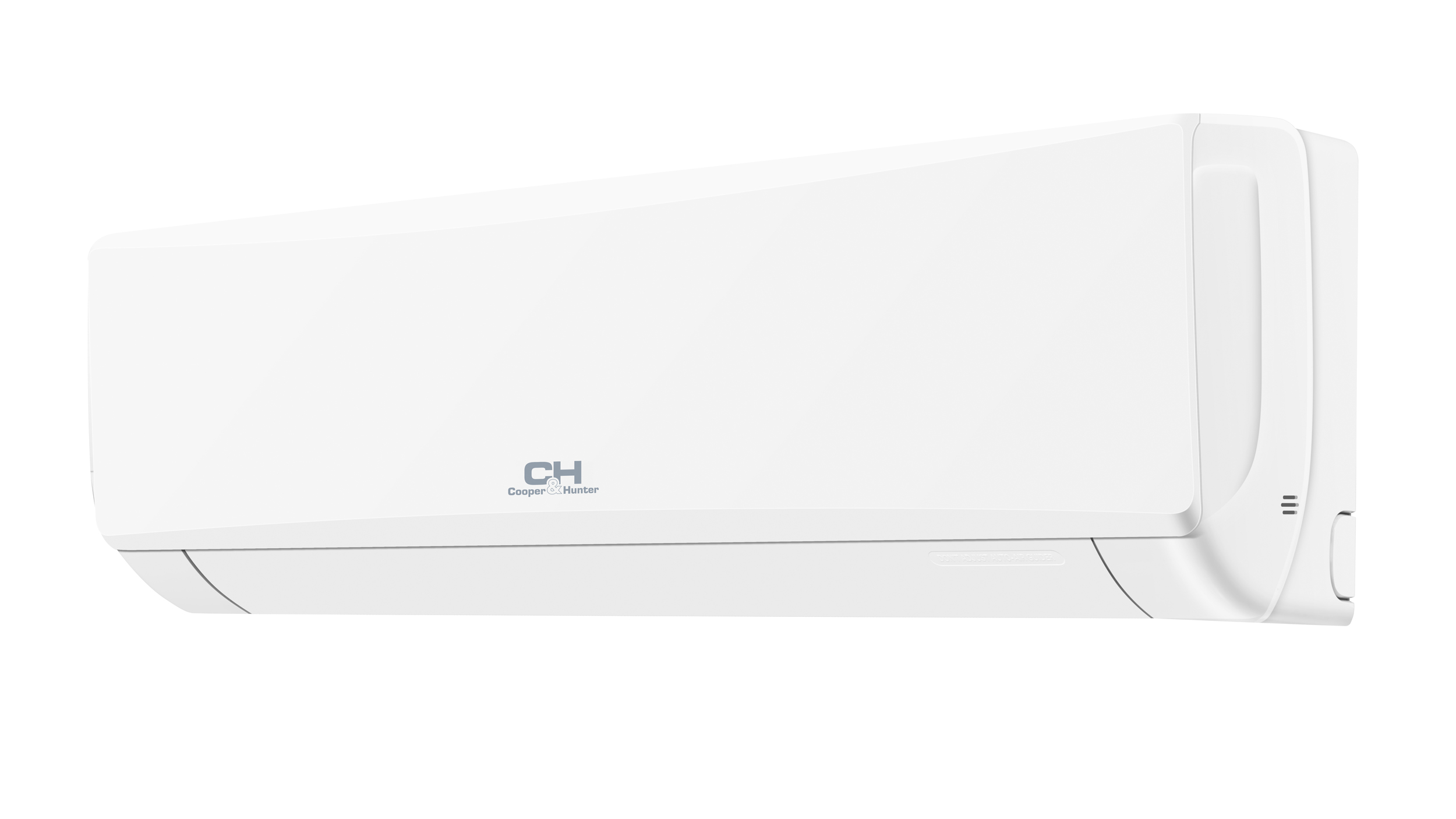

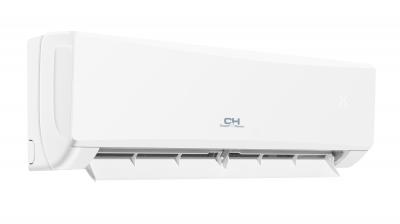

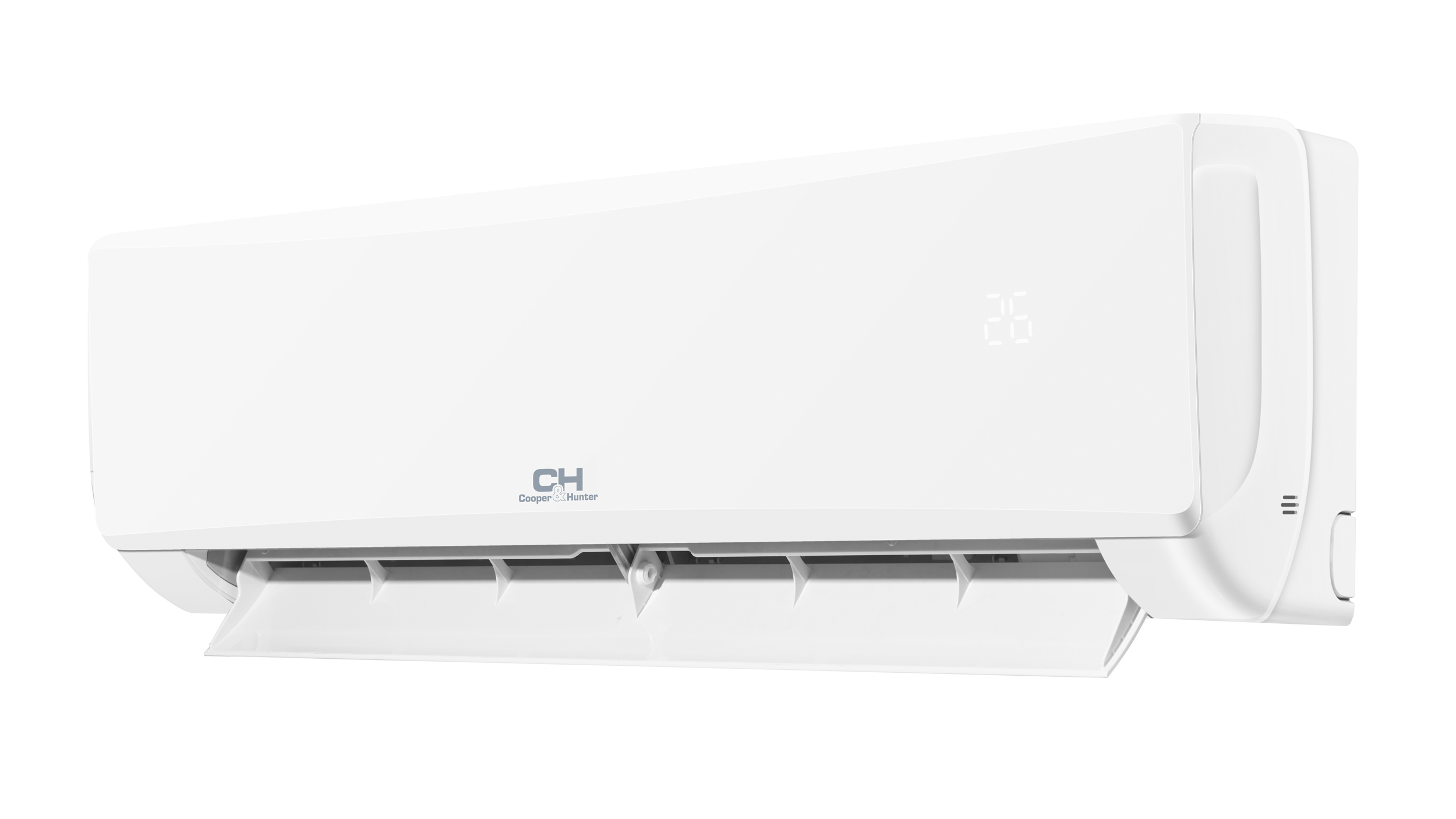

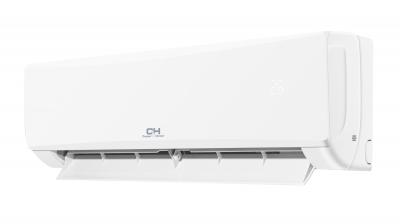

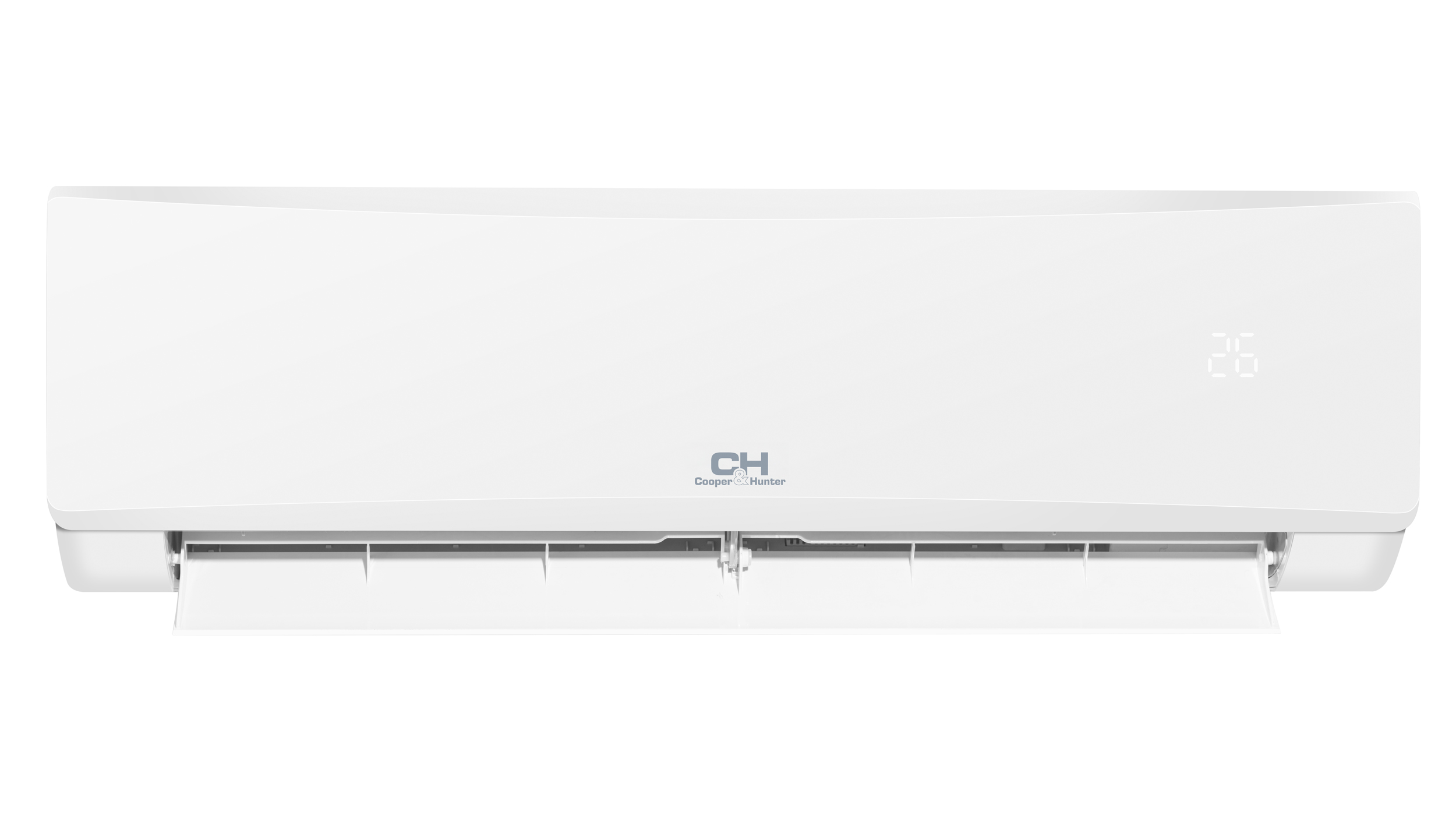

ARCTIC PLUS Series CH-S12FTXLA6

    Household heat pump. Adapted for heating in the Nordic countries;
    The temperature range of effective operation is from -25°C to +50°C;
    A special algorithm that ensures stable and efficient operation at low outdoor temperatures
    outdoor temperature, compressor and pan heating, outdoor unit fan speed control;
    I-Action technology - smooth and stable operation of the compressor at ultra-low frequencies (1 Hz);
    Highest energy efficiency class. Energy-saving equipment according to A+++ Energy Efficiency Class - GENERATON VI;
    “CH 7-SKY Technology” - a comprehensive filtration system based on seven filters with a wide range of action;
    The innovative DOUBLE SELF-CLEAN technology allows the air conditioner to self-clean from dust, fungi, viruses and bacteria by instant freezing and subsequent heating of the heat exchanger plates to +57-58°C. The air conditioner is completely cleaned in 30 minutes. This saves time and money on maintenance and allows you to get healthy air;
    Wi-Fi module, for the ability to control the air conditioner via Smartphone / Tablet (OS: Android, iOS);
    Protect your home from freezing: +8°C function. The air conditioner will maintain a temperature of +8°C, which prevents the room from freezing and consumes a minimum of electricity;
    Possibility to connect a wired remote control with the ability to program for two weeks and connect to the BMS smart home system (OPTIONAL).

cooling 3,51 kW
Heating 3,81 kW
Find out the price

Specifications

Model _ _ CH-S12FTXLA6
Продуктивність cooling kW 3,51
Продуктивність heating kW 3,81
Power supply _ ~VHz ~ 220-240В/50Гц/1Ф
Power consumption cooling _ kW 0.96
Power consumption heating _ kW 0.95
Airflow rate IDU m³/h 650/580/530/440/380/330/310
Sound level IDU dB(А) 43/39/37/34/31/28/25
Sound level ODU dB(А) 52
Refrigerant type _ _ R32
Dimensions IDU mm 874X276X206
Dimensions ODU mm 732X555X330
Weight IDU kg 9.0
_ ODU kg 25,5
Тип компресора _ _ Rotary
Dehumidification _ l/h 1,4
Temperature range cooling °С -15~50
_ heating _ -25~30
Refrigerant load _ kg 0.55
Liquid pipeline diameter _ mm/inch 6.35 / 1/4″
Gas pipeline diameter _ mm/inch 9.52 / 3/8″
Height difference maximum _ m 10
Length maximum pipeline _ m 20
Fixing distance _ mm 455
