Mini-split system SUPREME Series (Black) CH-S18FTXAM2S-BL

cooling 5,30 (1,20-7,20) kW
Heating 5,57 (1,20-9,20) kW
Find out the price
  • Heat pump. Designed for efficient heating in a cold climate of Northern Europe.
  • Modern two-stage inverter compressor efficiently operates in the temperature range -30°С - +54°C;
  • Option of heating start at temperature +8°C;
  • «CH SMART-ION Filter» - new generation of air cleaning technology.
  • Wi-Fi module for easy remote control via smartphone (Android and iOS support)
  • Compliance to EU Directive for ErP (Energy related Products) № 626/2011/EU from 1-01-2013 for consumer heat pumps and air conditioner with SEER A+++ SCOP A+++;
  • Record low noise level 18db. Whole plastic body, seamless heat exchanger
  • Higher class of energy efficiency. Energy saving equipment by type A+++ Class Energy Efficiency — Generation V
  • Stylish and compact design
  • Uninterruptable operation under input voltage range 96V – 260V. Innovative compact transformer.
  • Multispeed ventilator
  • Increased resouce

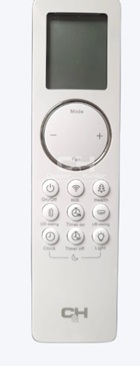

  • Time indicator on remote control
  • Ozone friendly R32 freon
  • Self-cleaning of indoor units. Ventilator continues operation after air conditioner stops and removes water from heat exchanger to avoid formation of fungus, molds and bacteriaю
  • Choice of filters for indoor unit: carbon "Anti-smell"; "Antibacterial suppressor"; "Nano-titanium antichemical catalyst"; Electret Dust Collector Filter; Catechin filter. Any two filters can be installed the same time.
  • Electrostatic air filter ЕСО-FRESH;
  • Covenient LED display on indoor unit. Can be deactivated by remote control.
  • Several modes for comfort sleep.
  • Intelligent AUTO mode – automatic change of working mode depending on temperature change.
  • 24-hours timer on-off.
  • Deferred ventilator start to avoid cold air flow in heating mode.
  • Antibacterial treatment of remote control.
  • Anticorrosion treatment of heat exchanger GREEN-FIN
  • Autorestart. Automatic saving last settings.
  • Intelligent defrosting system.
  • Manual switch of on/off  defrosting by remote control.
  • Power stabilizing for safe low-voltage start.
  • Self-diagnostic of main components and working modes
  • Blocking of control

Standard features

Ability to connect to the BMS system
Ability to connect a wired remote
Two-stage Compressor
Function 8C
Generation 5
X-Fan Function
LED display
Auto-swing louver
24hr timer mode
Super silent
Multi-speed fan
Dehumidification function
Anticorrosion GREEN-FIN
Intelligent defrost function
Self-diagnosis error protection
Indoor unit lighting


Capacity Cold kW 5,30 (1,20-7,20)
Warm kW 5,57 (1,20-9,20)
Electric power supply ~ 220-240В/50Hz/1Ph
Rated input Cold kW 1,32 (0,35-2,50)
Warm kW 1,32 (0,35-3,30)
SEER - Seasonal coefficient of performance Cooling   7,5(А++)
SCOP - seasonal coefficient of performance Heating   5,1(А+++)
Air productive capacity m³/h  -/780/950/1150/1200
Sound-pressure level Indoor unit dB(A)  30/33/36/39/42/45/48
Outdoor unit dB(A)  56
Type of refrigerant coolant R-32
Dimensions Indoor unit mm 1101х327х249
Outdoor unit mm 1000х790х427
Weight Indoor unit kg 16.5
Outdoor kg  64
Compressor type  rotor
Drainage l/h  1,8
Operational temperature range Cooling °C -18...+54
Heating °C -30...+24
Gas charge volume kg 1,5
Liquid pipeline diameter mm/inch  6,38/1/4"
Gas pipeline diameter mm/inch 15,88/5/8"
Maximum pipeline level difference m 20
Pipeline maximum length m  40
