Mini-split system SUPREME Series (Gold) CH-S24FTXAM2S-GD

cooling 7,03 (2,00-9,00) kW
Heating 7,03 (2,00-9,50) kW
Find out the price
  • Heat pump. Designed for efficient heating in a cold climate of Northern Europe.
  • Modern two-stage inverter compressor efficiently operates in the temperature range -30°С - +54°C;
  • Option of heating start at temperature +8°C;
  • «CH SMART-ION Filter» - new generation of air cleaning technology.
  • Wi-Fi module for easy remote control via smartphone (Android and iOS support)
  • Compliance to EU Directive for ErP (Energy related Products) № 626/2011/EU from 1-01-2013 for consumer heat pumps and air conditioner with SEER A+++ SCOP A+++;
  • Record low noise level 18db. Whole plastic body, seamless heat exchanger
  • Higher class of energy efficiency. Energy saving equipment by type A+++ Class Energy Efficiency — Generation V
  • Stylish and compact design
  • Uninterruptable operation under input voltage range 96V – 260V. Innovative compact transformer.
  • Multispeed ventilator
  • Increased resouce

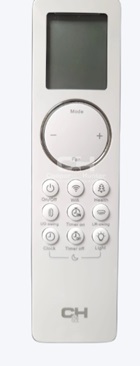

  • Time indicator on remote control
  • Ozone friendly R32 freon
  • Self-cleaning of indoor units. Ventilator continues operation after air conditioner stops and removes water from heat exchanger to avoid formation of fungus, molds and bacteriaю
  • Choice of filters for indoor unit: carbon "Anti-smell"; "Antibacterial suppressor"; "Nano-titanium antichemical catalyst"; Electret Dust Collector Filter; Catechin filter. Any two filters can be installed the same time.
  • Electrostatic air filter ЕСО-FRESH;
  • Covenient LED display on indoor unit. Can be deactivated by remote control.
  • Several modes for comfort sleep.
  • Intelligent AUTO mode – automatic change of working mode depending on temperature change.
  • 24-hours timer on-off.
  • Deferred ventilator start to avoid cold air flow in heating mode.
  • Antibacterial treatment of remote control.
  • Anticorrosion treatment of heat exchanger GREEN-FIN
  • Autorestart. Automatic saving last settings.
  • Intelligent defrosting system.
  • Manual switch of on/off  defrosting by remote control.
  • Power stabilizing for safe low-voltage start.
  • Self-diagnostic of main components and working modes
  • Blocking of control

Standard features

Ability to connect to the BMS system
Ability to connect a wired remote
Two-stage Compressor
Function 8C
Generation 5
X-Fan Function
LED display
Auto-swing louver
24hr timer mode
Super silent
Multi-speed fan
Dehumidification function
Anticorrosion GREEN-FIN
Intelligent defrost function
Self-diagnosis error protection
Indoor unit lighting


Capacity Cold kW 7,03 (2,00-9,00)
Warm kW 7,03 (2,00-9,50)
Electric power supply ~ 220-240В/50Hz/1Ph
Rated input Cold kW 1,85 (0,45-3,70)
Warm kW 1,75 (0,38-3,80)
SEER - Seasonal coefficient of performance Cooling   6,5(А++)
SCOP - seasonal coefficient of performance Heating   5,3(А+++)
Air productive capacity m³/h -/850/950/1100/1250
Sound-pressure level Indoor unit dB(A) 32/35/38/41/44/47/50
Outdoor unit dB(A) 56
Type of refrigerant coolant R-32
Dimensions Indoor unit mm 1101х327х249
Outdoor unit mm 1000х790х427
Weight Indoor unit kg 16.5
Outdoor kg 65
Compressor type rotor
Drainage l/h 2,0 l/h
Operational temperature range Cooling °C -18...+54
Heating °C -30...+24
Gas charge volume kg 2,0 kg
Liquid pipeline diameter mm/inch 6,38/1/4"
Gas pipeline diameter mm/inch 15,88/5/8"
Maximum pipeline level difference m 30
Pipeline maximum length m 50
