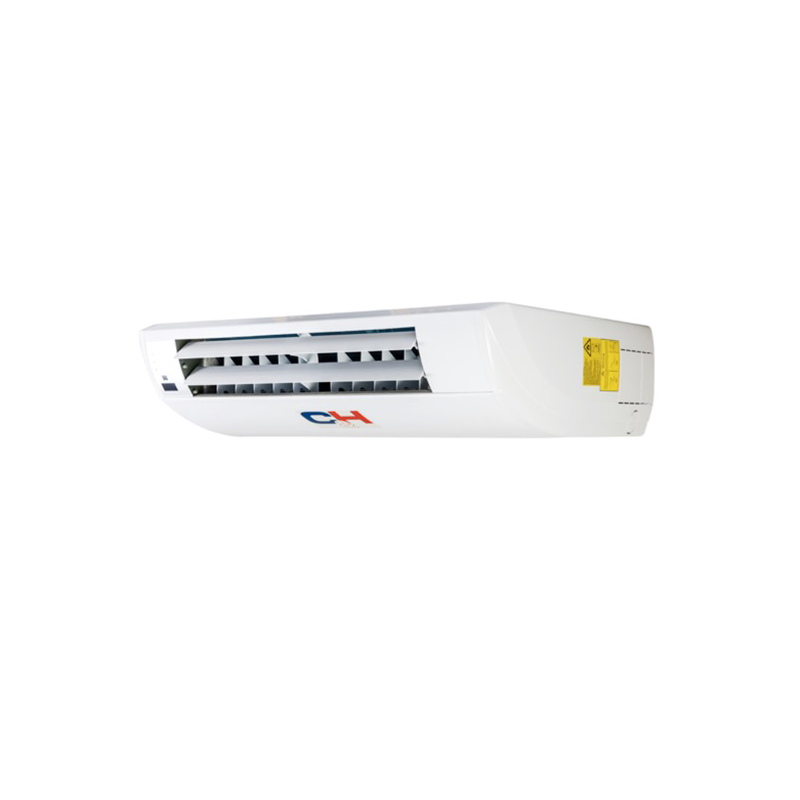

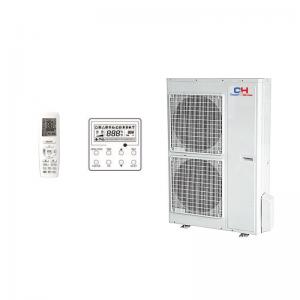

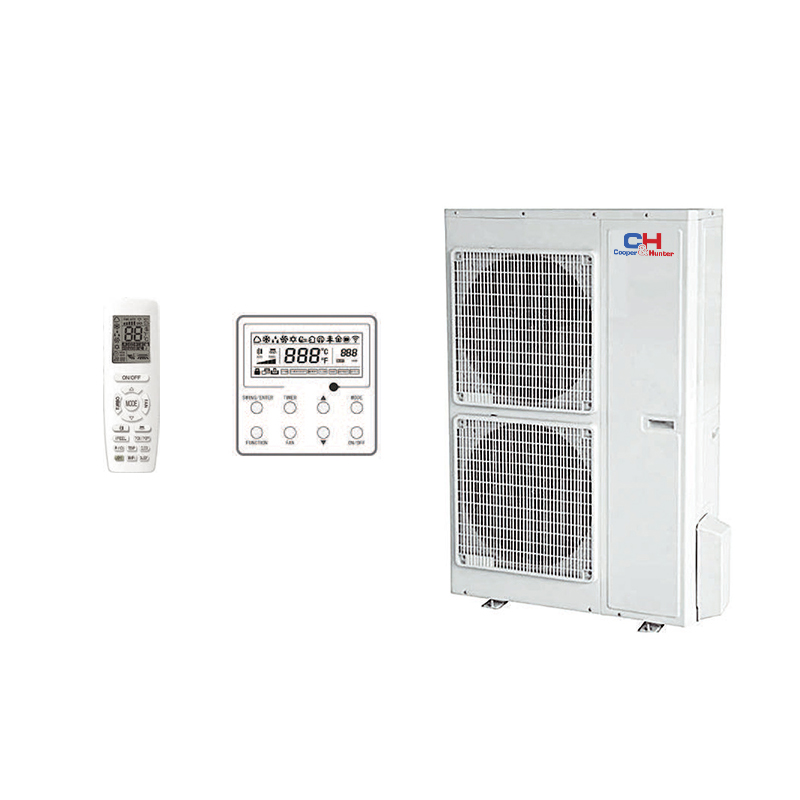

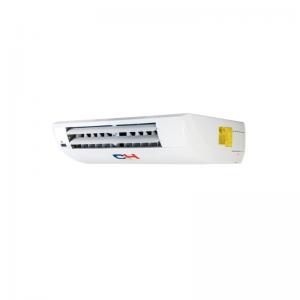

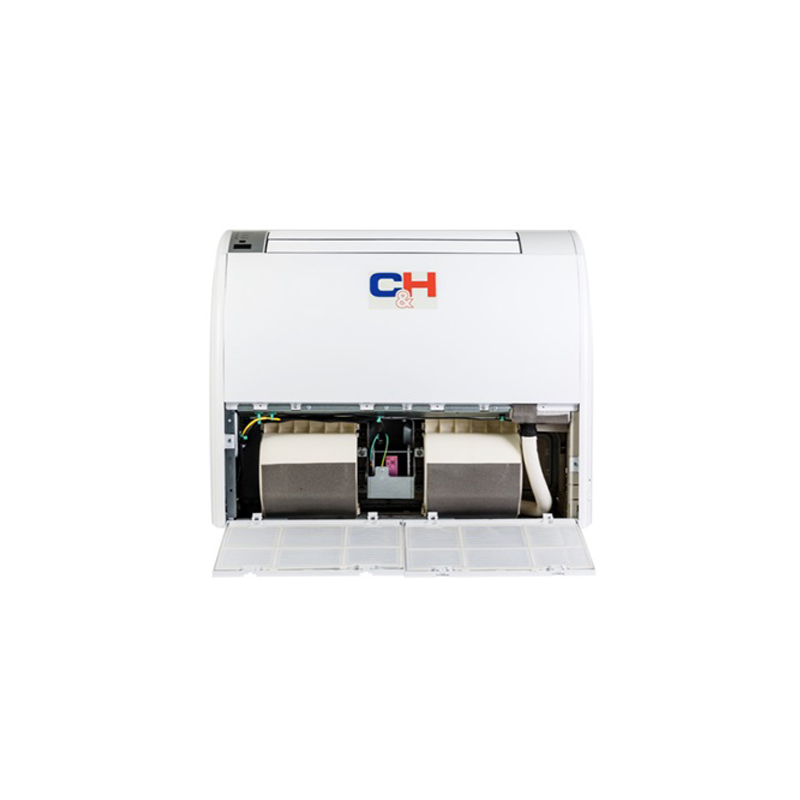

Nordic Commercial Series IN Floor-ceiling type (Inverter) CH-IF140NK/CH-IU140NM

cooling 14.00 kW
Heating 15.00 kW
Find out the price
  • Simple installation
  • Self-testing of main units and modes to identify malfunctions;
  • Multi-level system protection;
  • Pipeline length is up to 75 m (for high power models).

Standard features

R410A

Specifications

Capacity cooling kW 14.00
heating kW 15.00
Power supply     ~380-415V/50Hz/1Ph
Power input cooling kW 5.00
heating kW 4.40
Current cooling А 8.60
heating А 7.60
Energy efficiency cooling EER 2.80
heating COP 3.41
Air flow m³/h
Sound pressure level IDU dB(А)
Sound pressure level ODU dB (А) 59
Refrigerant type R410a
Overall dimensions (W/H/D) IDU mm 1570/665/235
ODU mm 940/820/460
Weight IDU/ODU kg  /96
Refrigerant charge kg 3.7
Temperature range cooling °C -15 ... +48
heating °C -20 ... +24
Liquid connection diameter mm/inch 9.53/3/8”
Gas connection diameter mm/inch 15.88/5/8”
Max. height m 30
Max. length m 75
Distance between ODU mounting bolts 610
Interblock wired cords number (control) 2*0.75 – length < 20 m
2*1.0 – length > 20 m
Main power point ODU
Wired cords quantity (power supply IDU/ODU) IDU 3(Ø1.0 mm)
ODU 5(Ø1.5 mm)
Factory refrigerant charge (meters) m 7.5
Refrigerant charge per meter) g/ m 50.0
