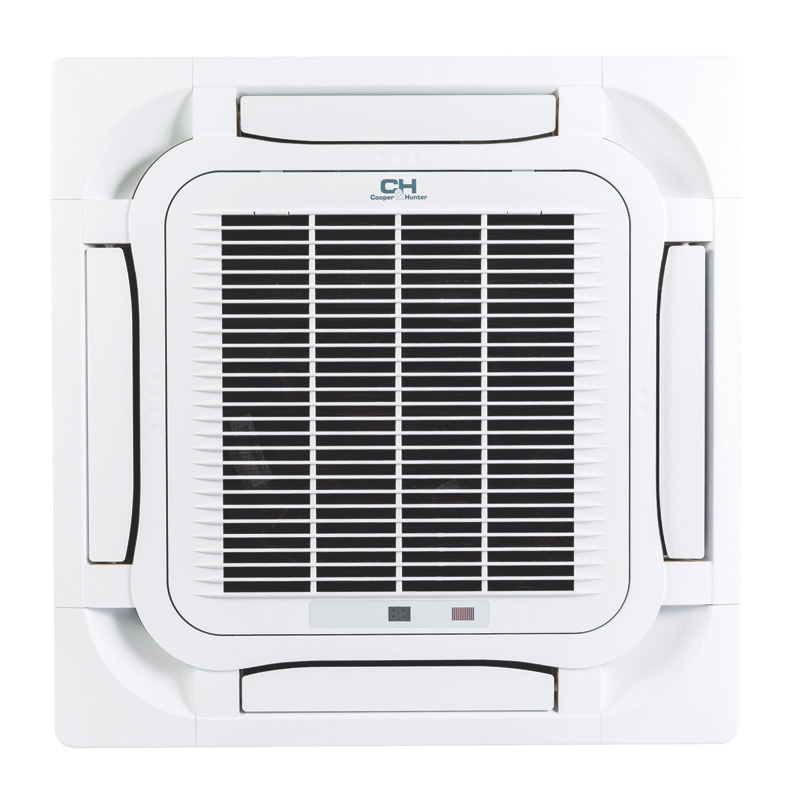

Nordic Commercial N Series Cassette Type CH-C050NK/CH-U050NK

cooling 4.80 kW
Heating 5.00 kW
Find out the price
  • Simple installation;
  • Compact overall dimensions;
  • Low noise fan;
  • Long life washable filter;
  • Drain pump;
  • Self-testing of main units and modes to identify malfunctions;
  • Multi-level protection system;
  • Pipeline length is up to 75 m (for high power models);
  • The possibility of selecting an indoor air temperature sensor for controlling.

Standard features

R410A

Specifications

Capacity Cooling kW 4.80
Heating kW 5.00
Electric power supply 220-240V/1Ph/50Hz
Rated input Cooling kW 1.55
Heating kW 1.35
Energy performance Cooling EER 3.10
Heating COP 3.70
Air Flow Indoor unit m³/h 700
Sound pressure level Indoor unit dB (A) 44/43/38/35
Outdoor unit dB (A) 51
Type of refrigerant coolant R410a
Volume of refrigerant coolant kg 1.20
Weight Indoor unit kg 17
Panel kg 3
Outdoor unit kg 39
Operation temperature range Cooling °C -15 ... +48
Heating °C -15 ... +24
Liquid pipeline diameter mm/inch 6.35/1/4”
Gas pipeline diameter mm/inch 12.7/1/2”
Maximum pipeline level difference m 15
Pipeline maximum length m 30
Communication Cords 2x0.75mm²
Main power supply area Outdoor unit
Number of the strands (power supply) 3x1. 5mm²
Factory Freon fill (for the number of the running meters) m 7
Freon per one running meter (surplus. For one running meter) g/m 22
