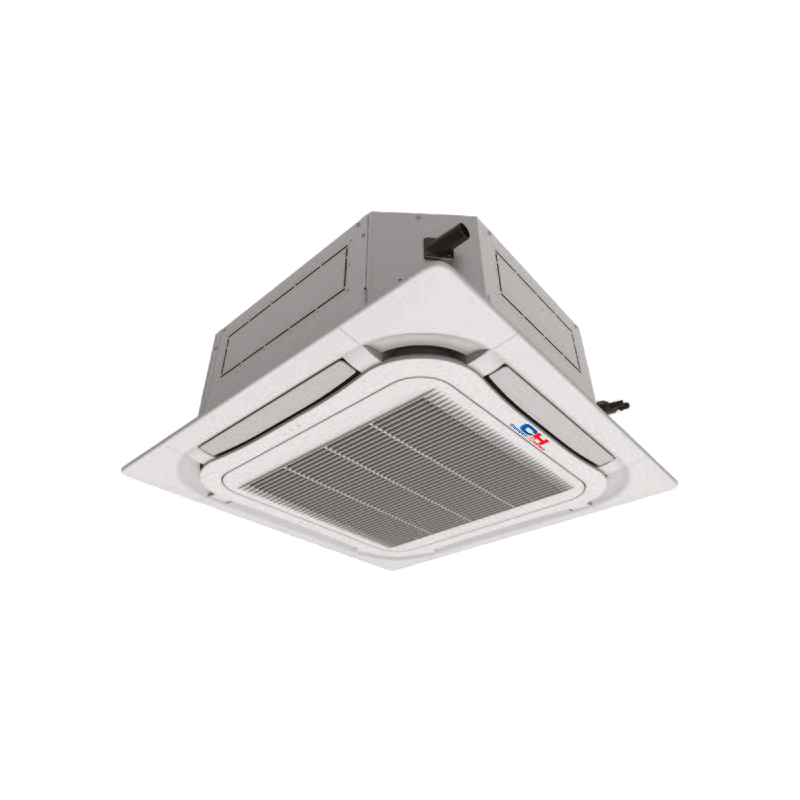

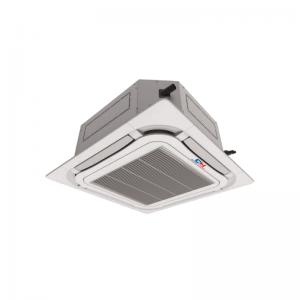

Nordic Commercial Series IN Cassette Type (Inverter) CH-IC071NK/CH-IU071NK

cooling 7.00 kW
Heating 8.00 kW
Find out the price
  • Simple installation
  • Compact overall dimensions
  • Low noise fan;
  • Long life cycle washable filter;
  • Drain pump;
  • Self-testing of main units and modes to identify malfunctions;
  • Multi-level system protection.
  • Pipeline length is up to 75 m (for high power models);
  • The possibility of selecting an indoor air temperature sensor for controlling.

Standard features

R410A

Specifications

Capacity cooling kW 7.00
heating kW 8.00
Power supply ~220-240V/50Hz/1Ph
Power input cooling kW 2.18
heating kW 2.20
Current cooling А -
heating А -
Energy efficiency cooling EER 3.21
heating COP 3.64
Air flow m³/h -
Sound pressure level IDU dB(А) -
Sound pressure level ODU dB (А) -
Refrigerant type R410a
Overall dimensions (W/H/D) IDU mm 570/265/570
IDU panel mm 620/-/620
ODU mm 892/340/698
Weight IDU/ODU kg  /53
Refrigerant charge kg 2.00
Temperature range cooling °C -15 ... +48
heating °C -20 ... +24
Liquid connection diameter mm/inch 9.53/3/8”
Gas connection diameter mm/inch 15.88/5/8”
Max. height m 25
Max. length m 50
Distance between ODU mounting bolts mm 560
Interblock wired cords number (control) 2*0.75 – length < 20 m
2*1.0 – length > 20 m
Main power point ODU
Wired cords quantity (power supply IDU/ODU) IDU 3(Ø1.0 mm)
ODU 3(Ø2.5 mm)
Factory refrigerant charge (meters) m 5
Refrigerant charge per meter g/ m 22.0
