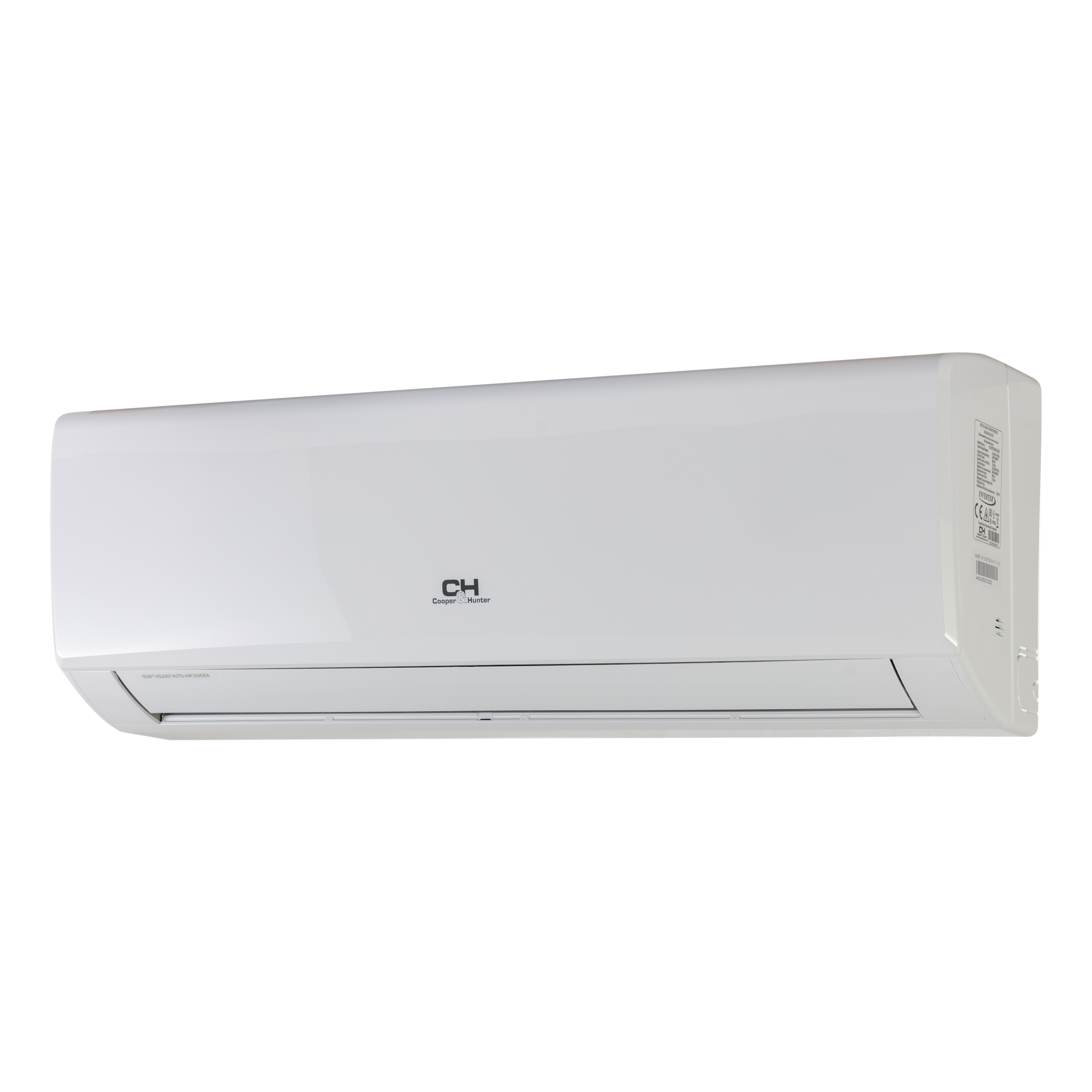

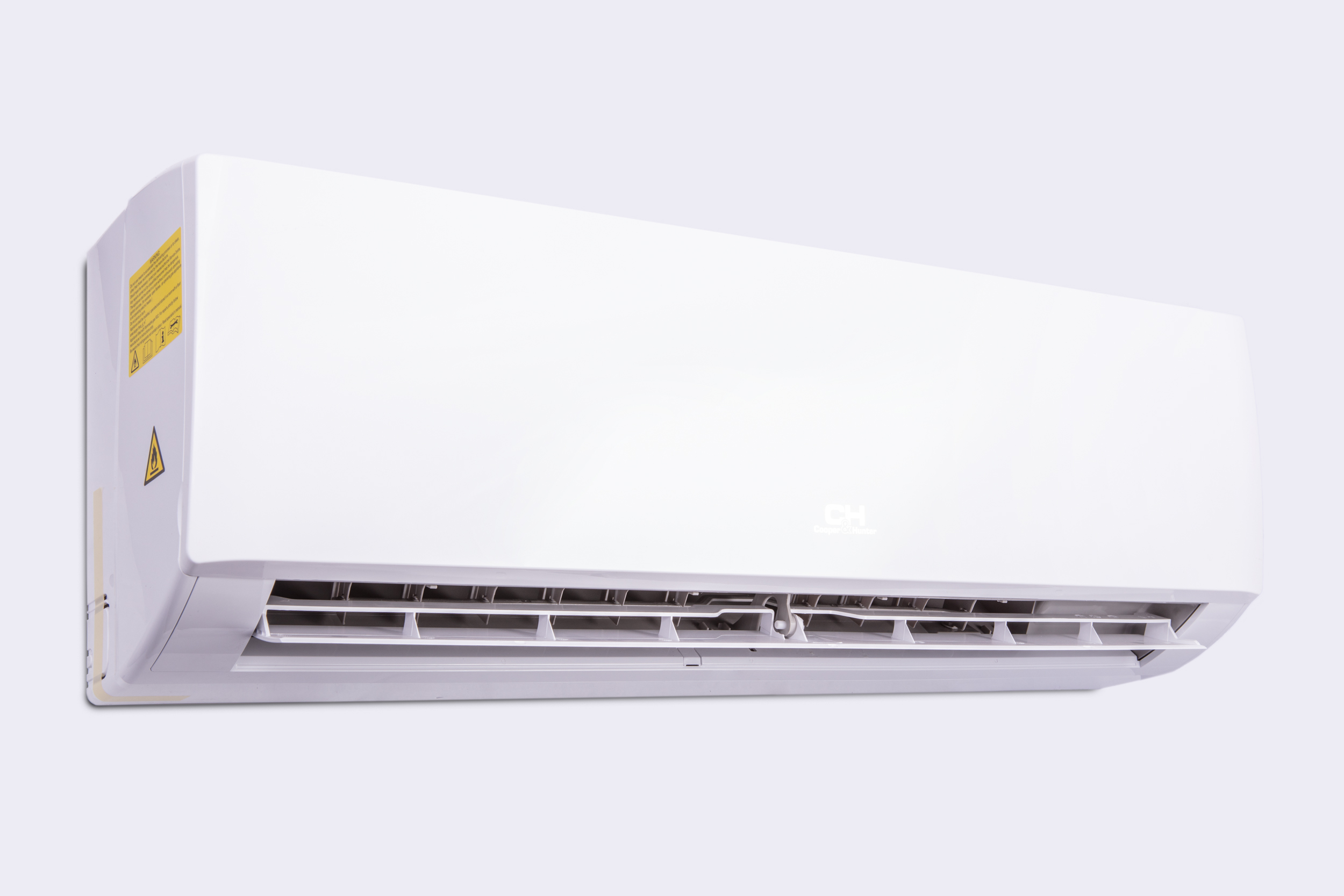

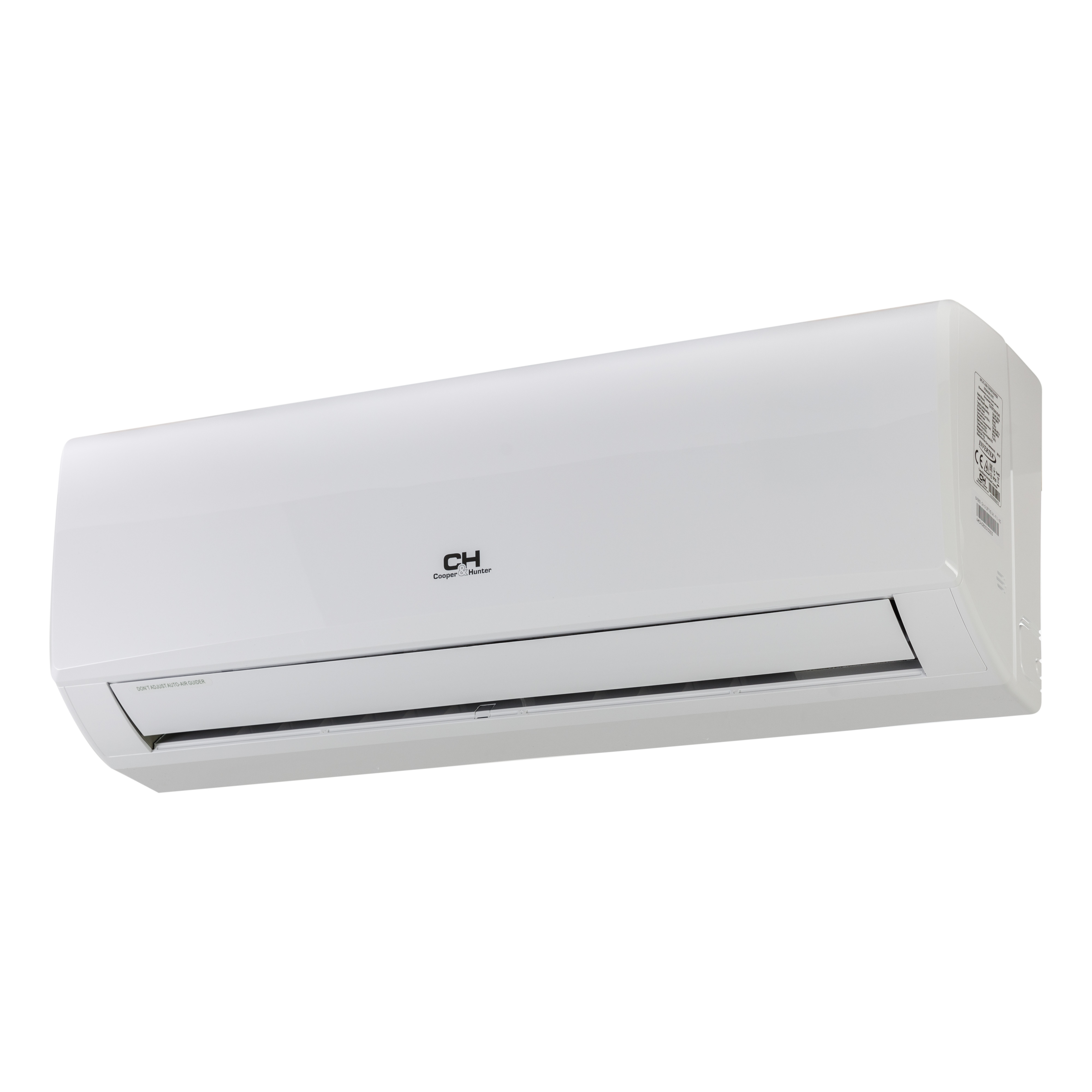

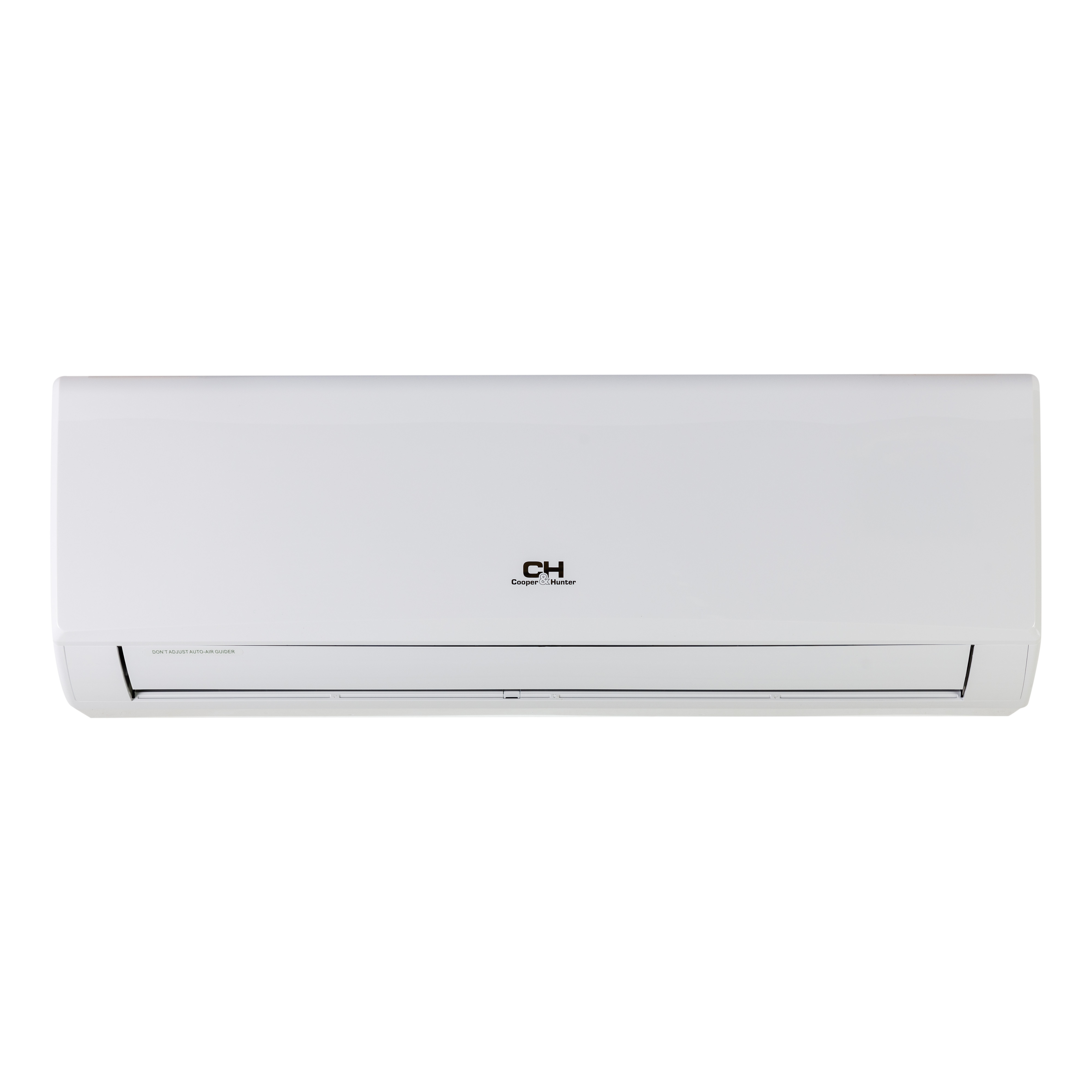

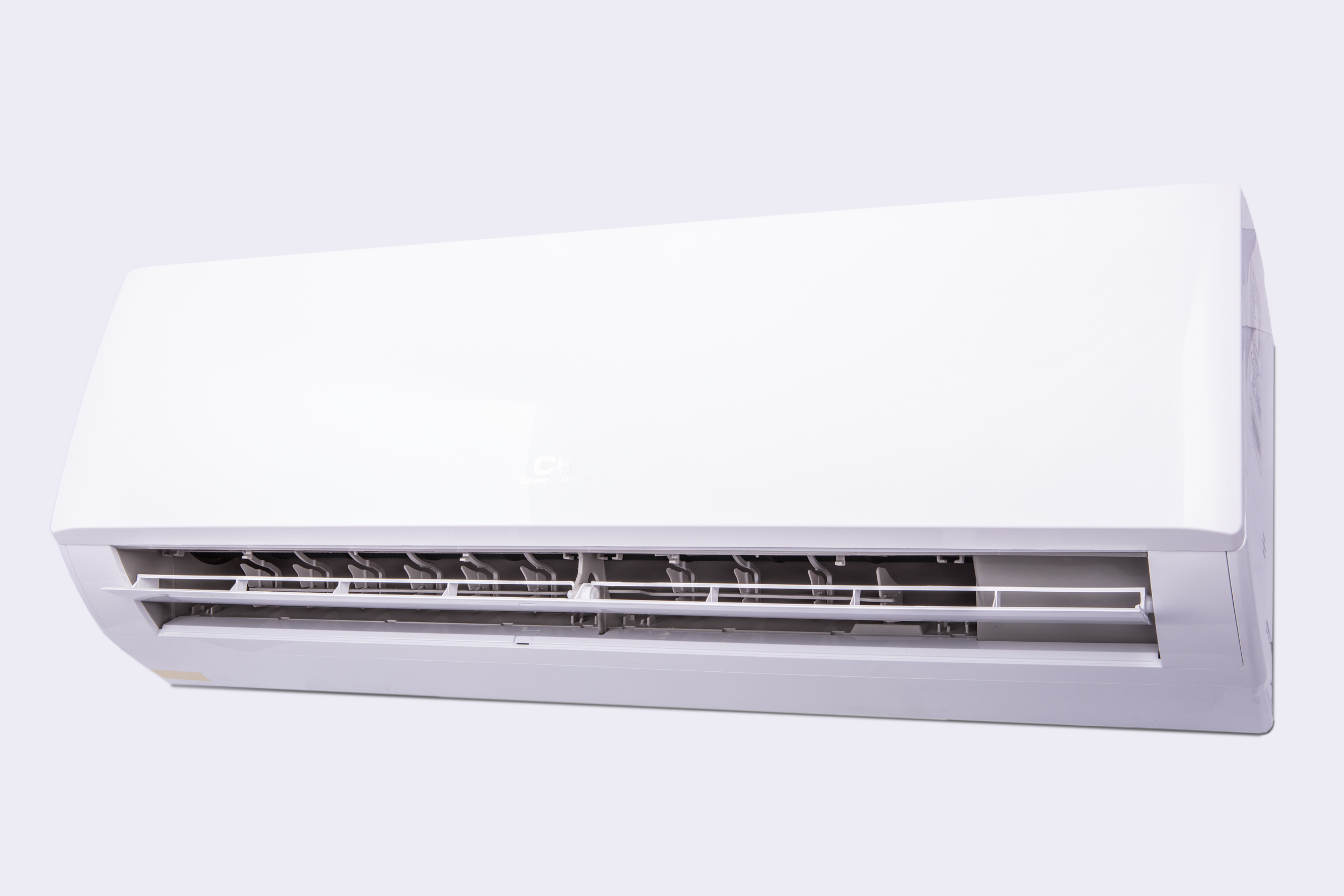

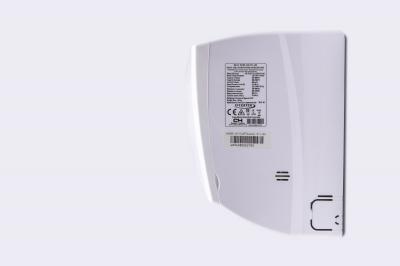

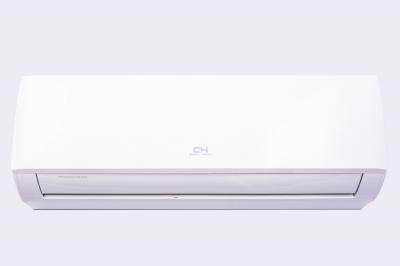

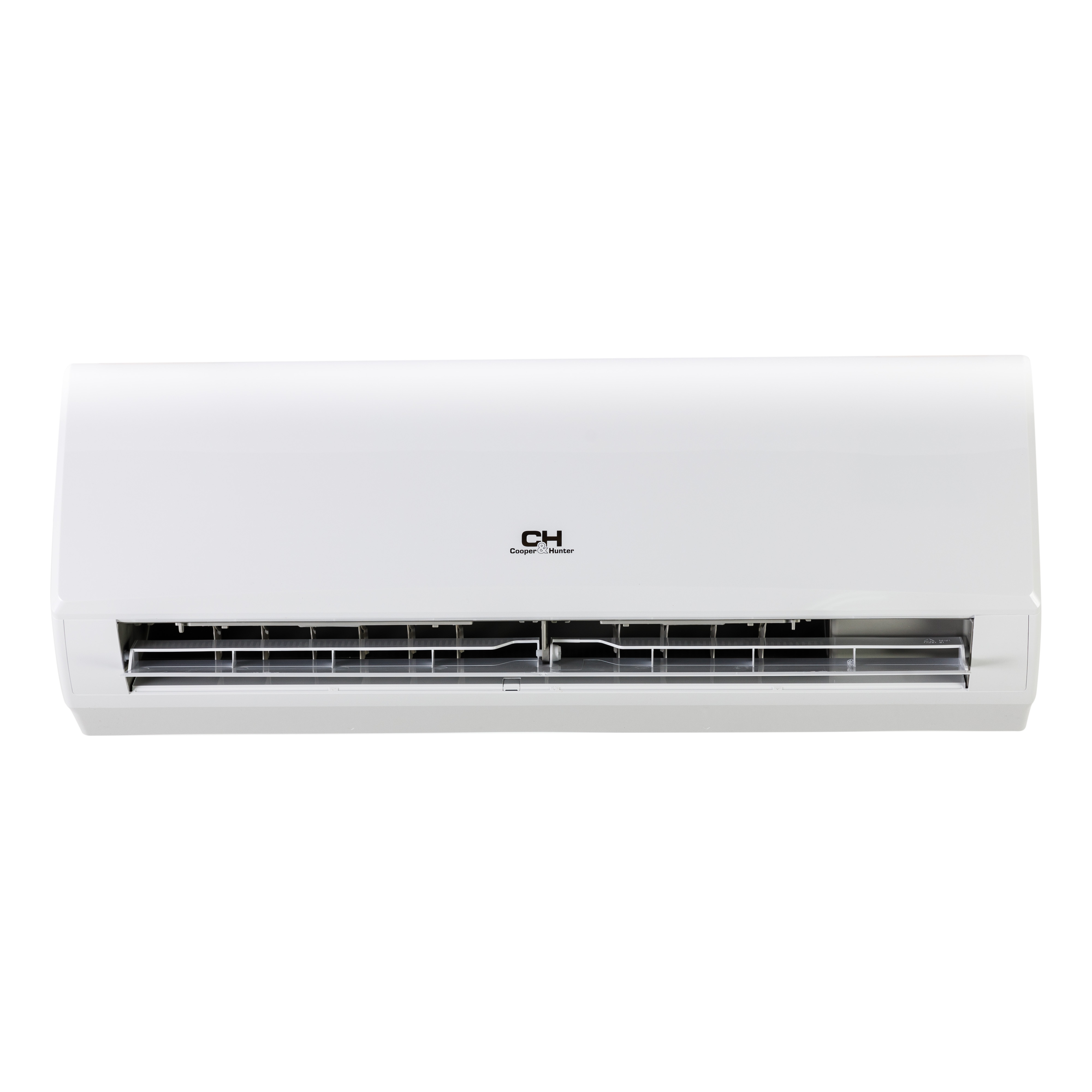

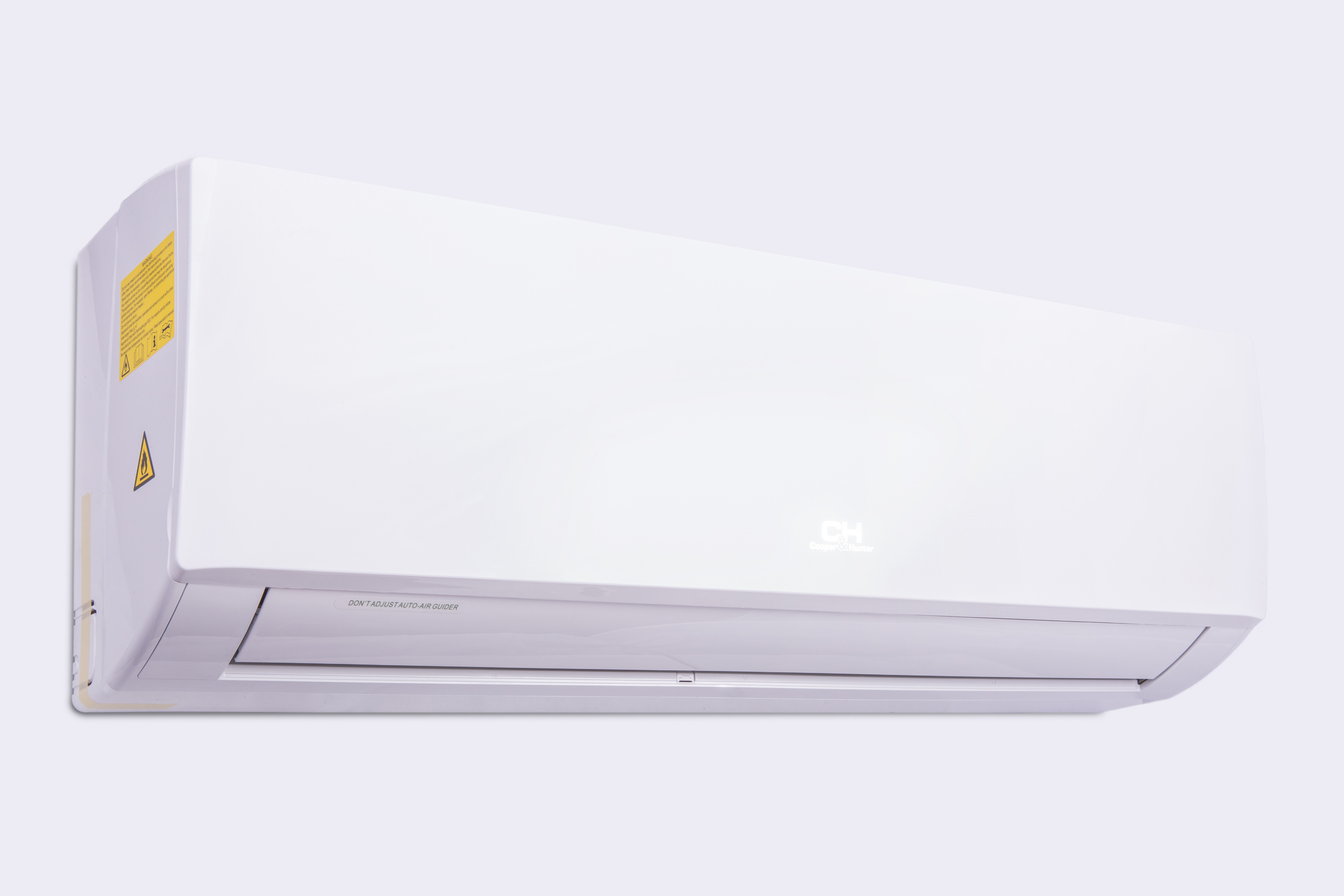

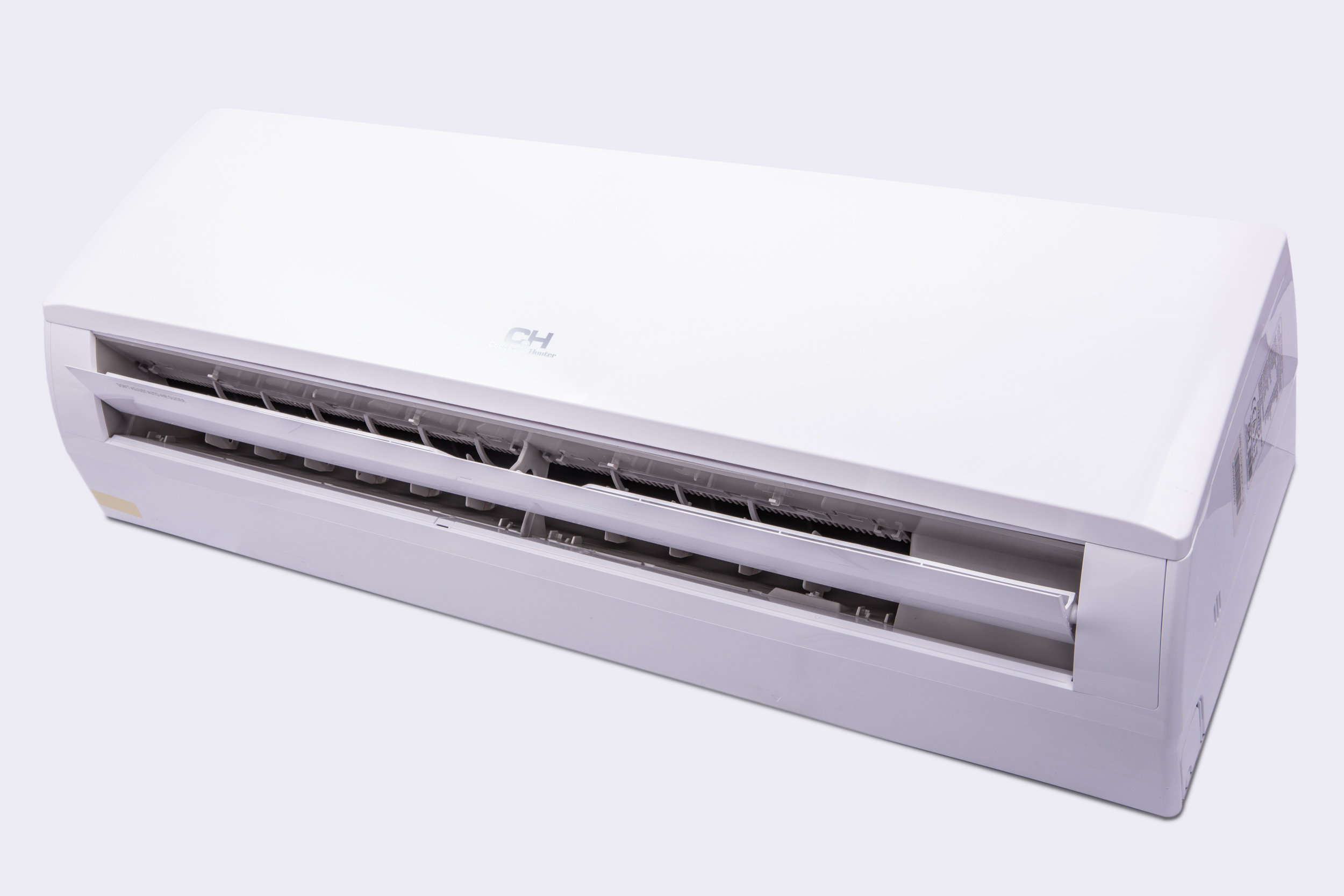

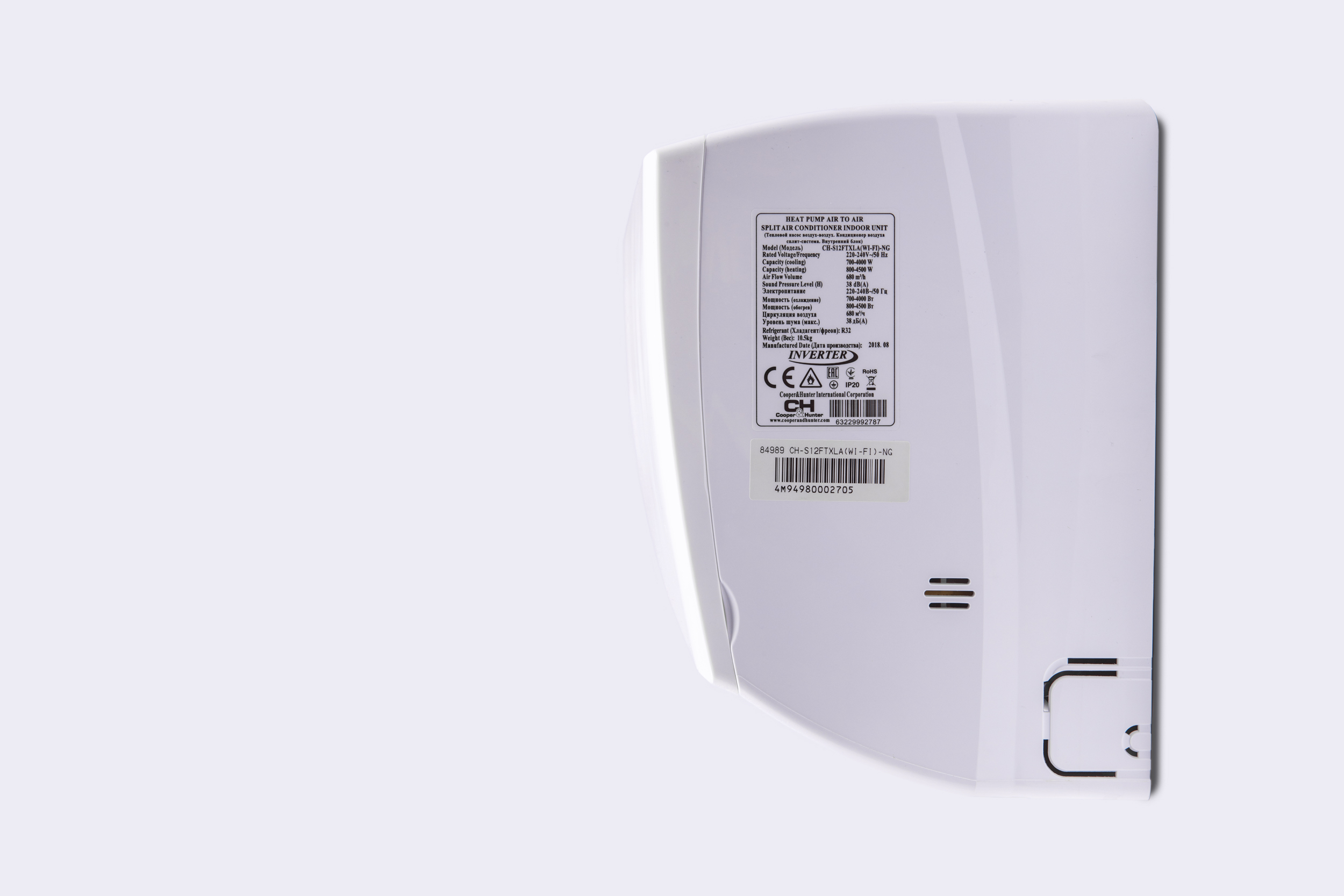

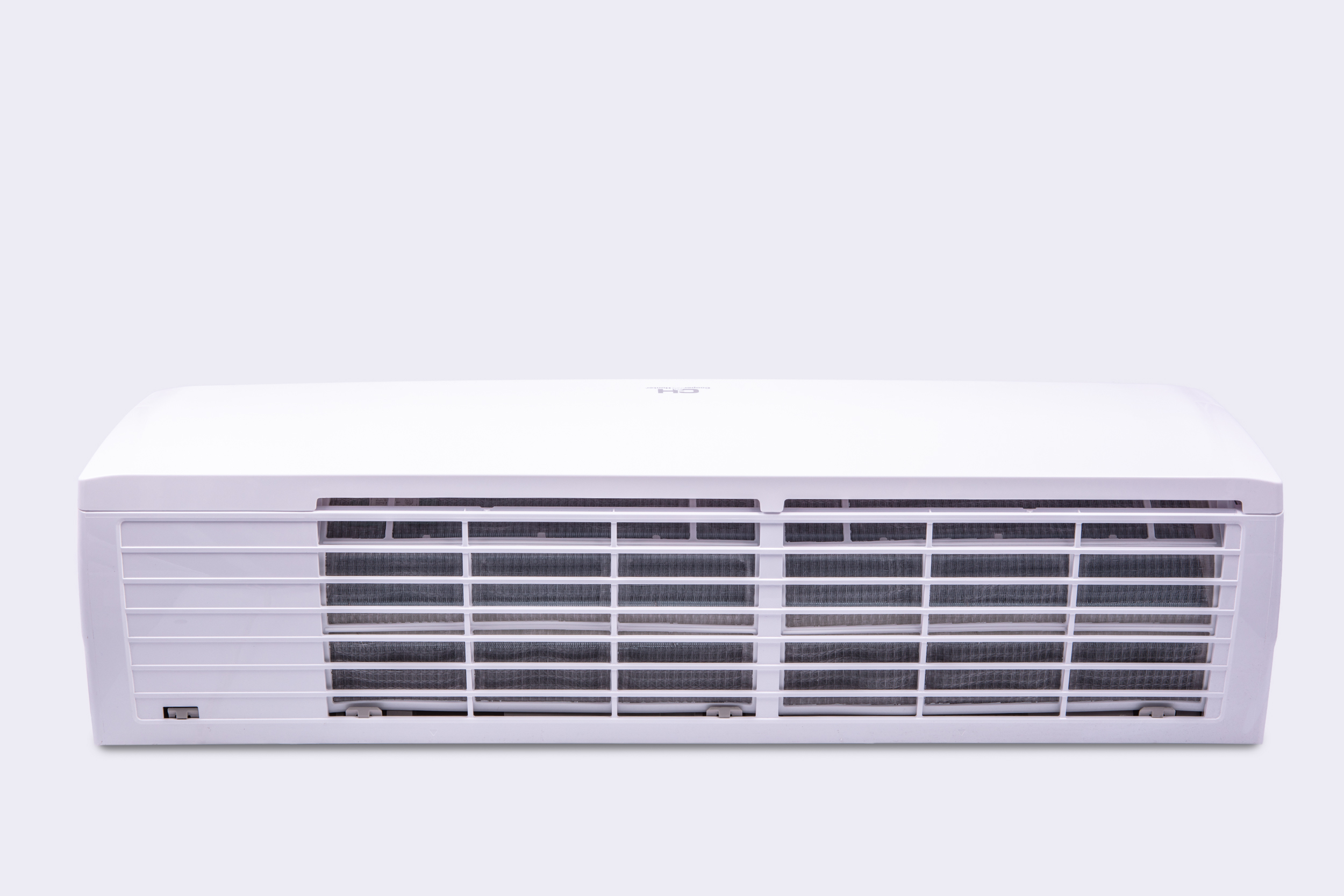

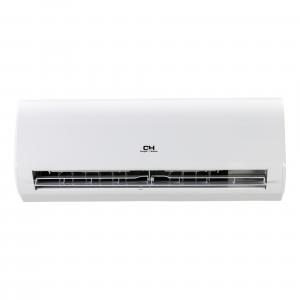

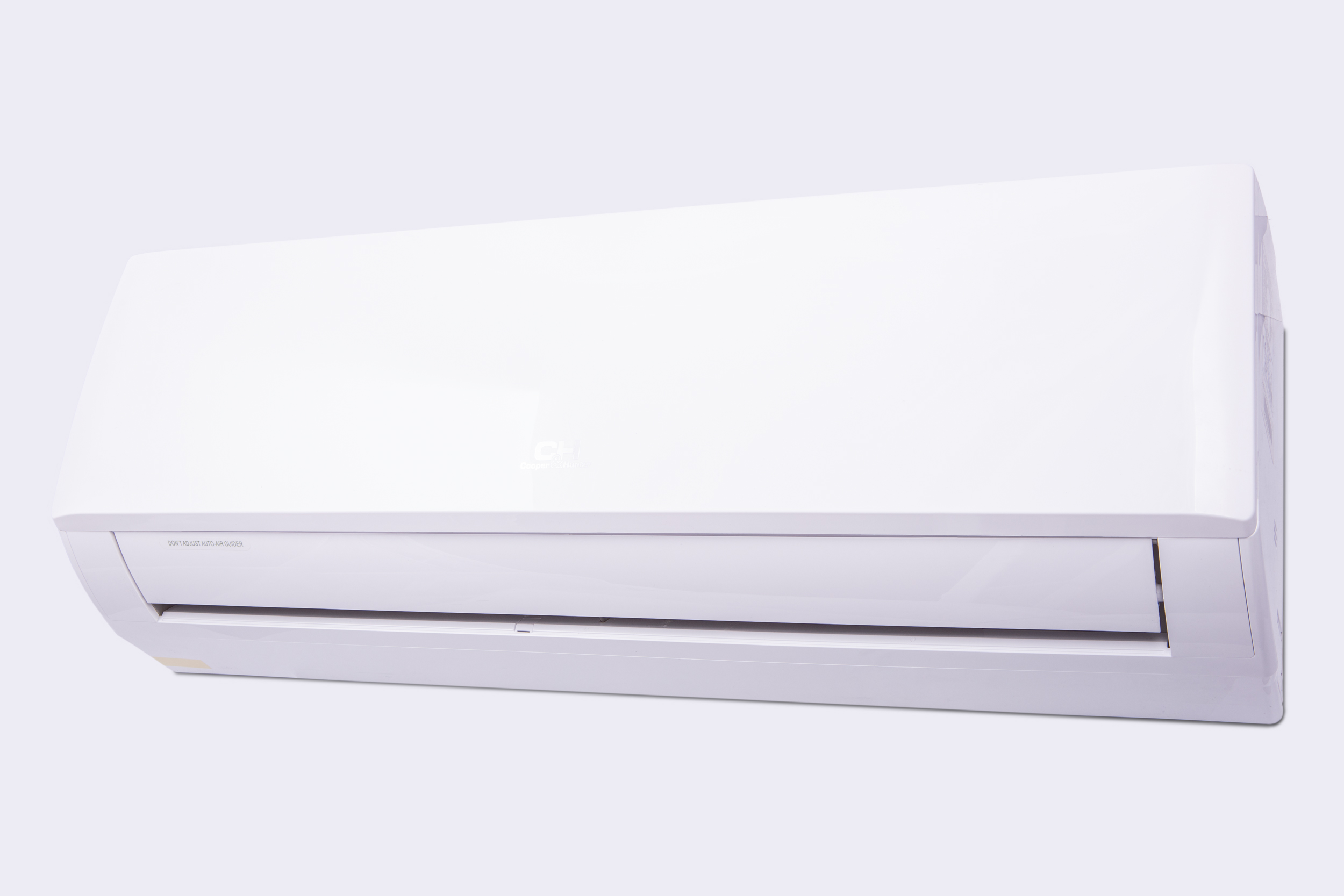

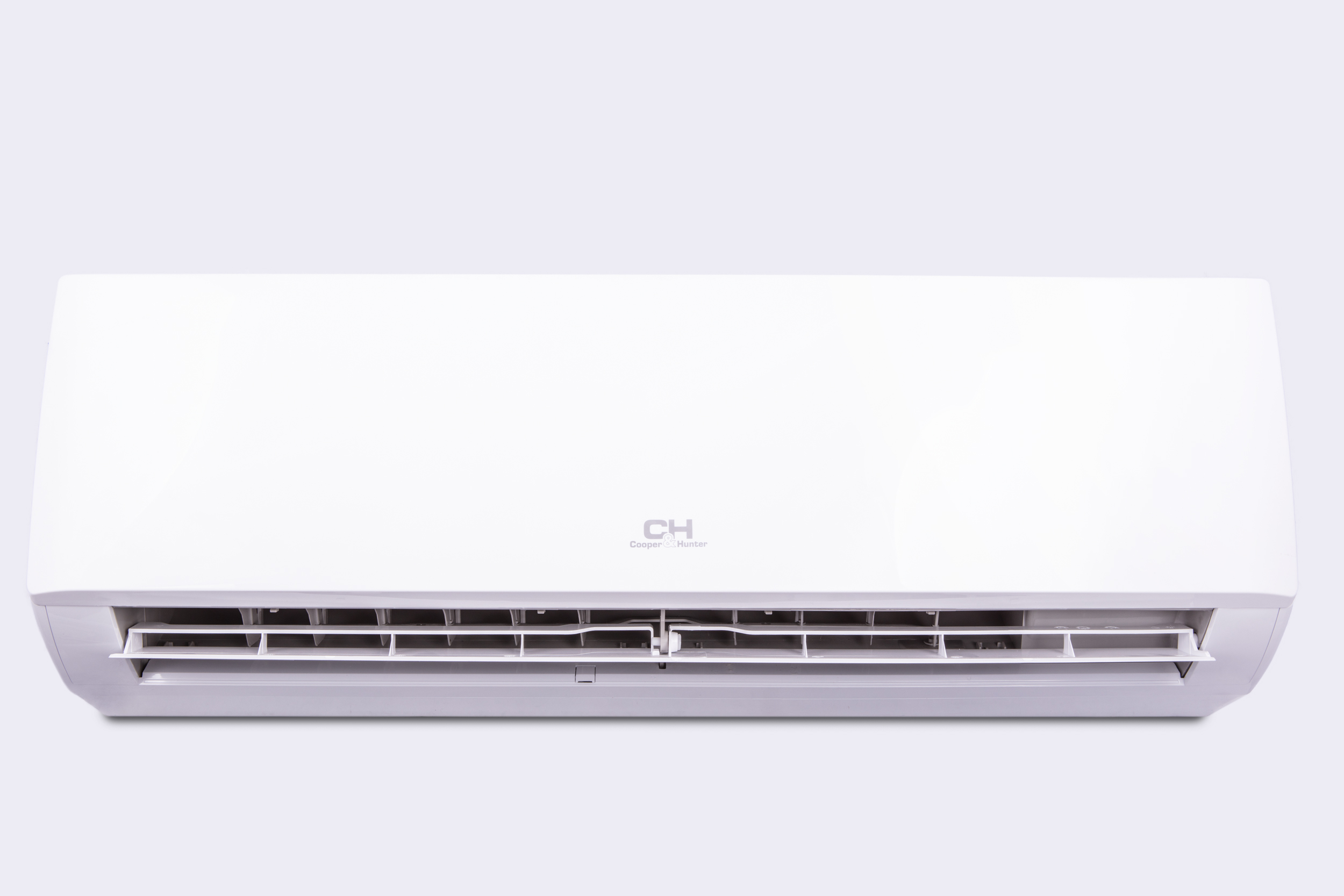

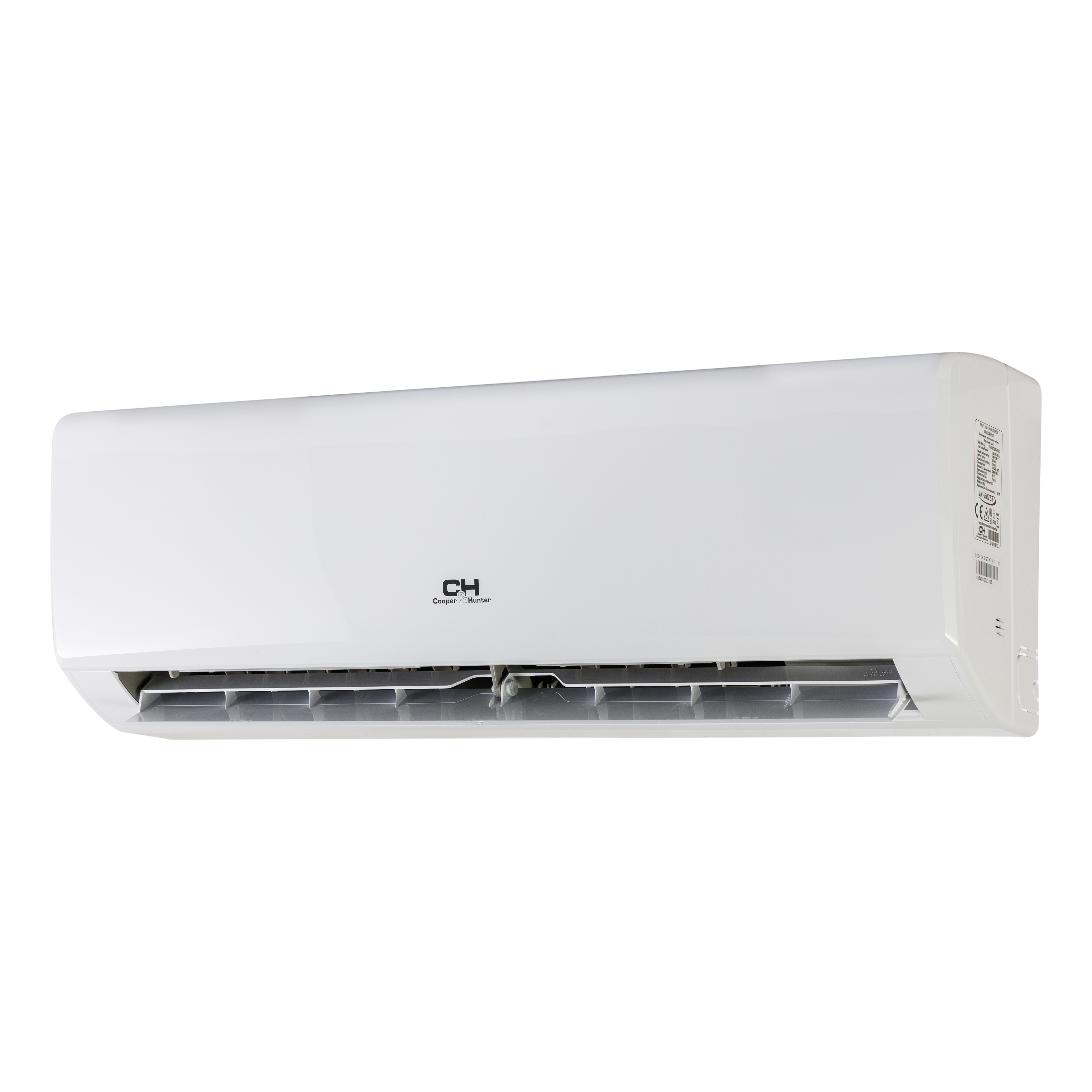

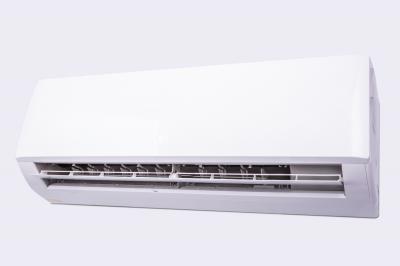

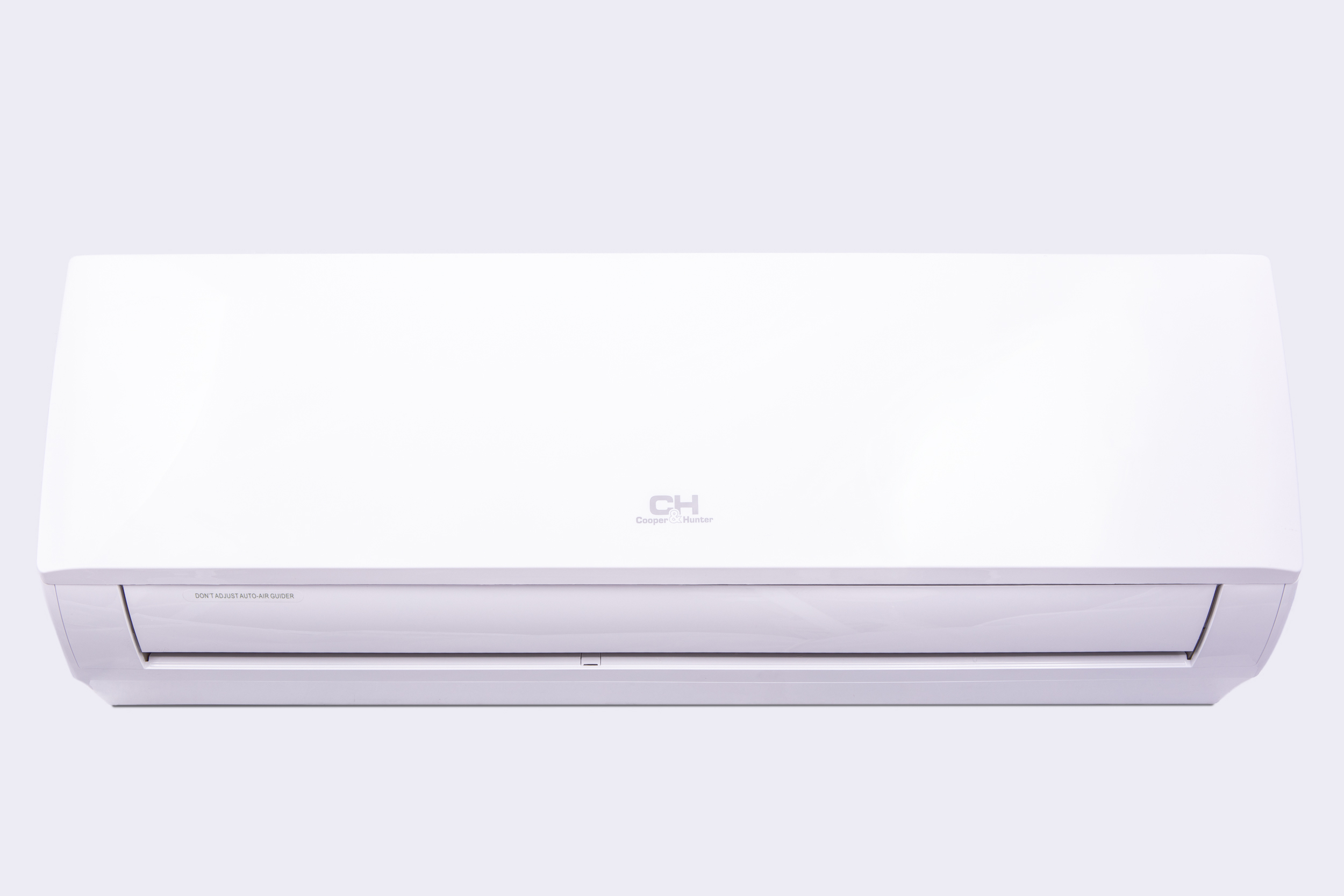

Mini-split system Arctic Inverter NG Series CH-S12FTXLA-NG

cooling 3,50 (0,70-4,00) kW
Heating 3,67 (0,80-4,50) kW
Find out the price
  • Household heat pump. Designed to provide warmth to the northern countries;
  • Operating temperature range: cooling from -15°С to +48°C, heating from -25°С to +24°C;
  • Continuous operation in the range of 96V-260V;
  • The innovative, compact transformer.

Standard features

Ability to connect to the BMS system
Ability to connect a wired remote
A+++
CH SMART-ION Filter
CH 7-SKY
WI-FI
I-Action
Inverter
Function 8C
Generation 5
I-FEEL
LED display
Auto-swing louver
24hr timer mode
Auto-restart
Super silent
Sleep
R32
Multi-speed fan
Dehumidification function
ЕСО-FRESH Filter
Anticorrosion GREEN-FIN
Intelligent defrost function
Self-diagnosis error protection
Auto-protection
Indoor unit lighting

Specifications

Capacity Cold kW 3.50(0.70-4.00)
Warm kW 3.67(0.80-4.50)
Electric power supply ~220-240V/50Hz/1Ph
Rated input Cold kW 0.80(0.09-1.45)
Warm kW 0.79(0.18-1.50)
SEER - Seasonal coefficient of performance Cooling   7.0(А++)
SCOP - seasonal coefficient of performance Heating   5.1(А+++)
Air productive capacity m³/h 390/420/450/490/560/620/680
Sound-pressure level Indoor unit dB(A) 22/24/26/29/32/35/38
Outdoor unit dB(A) 52
Type of refrigerant coolant R32
Dimensions Indoor unit mm 845х289х209
Outdoor unit mm 848х596х320
Weight Indoor unit kg 10.5
Outdoor kg 31
Compressor type rotor
Drainage l/h 1.40
Operational temperature range Cooling °C -15/+48
Heating °C -25/+24
Gas charge volume kg 0.70
Liquid pipeline diameter mm/inch 6.38/1/4"
Gas pipeline diameter mm/inch 9.53/3/8"
Maximum pipeline level difference m 10
Pipeline maximum length m 20
Distance between the bolts of the outdoor unit fastening mm 540
