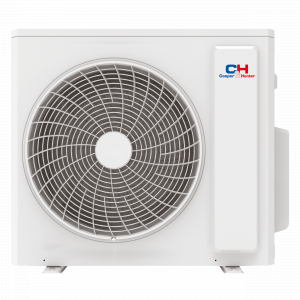

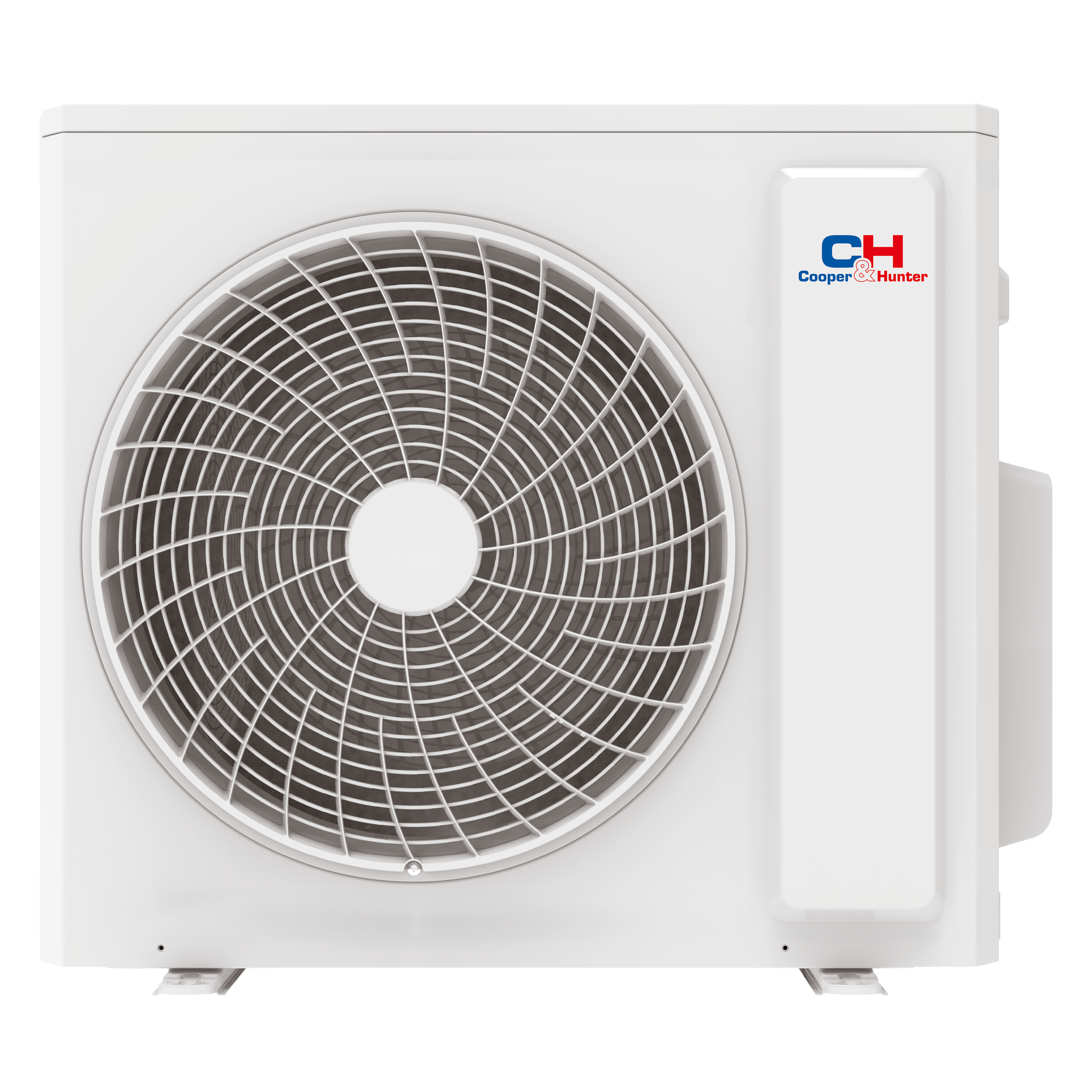

NORDIC Multi Light Hydro CHML-U36RK4-HW

cooling 10,60 kW
Heating 12,00 kW
Find out the price

I- Action technology
Auto-start Self-diagnosis
Intelligent defrost
R 32 refrigerant
Multi-split inverter Blue Fin Coating
Energy efficient copper tubes
Multi-speed fan
Tray heating system
Water heating system

Specifications

Number of connected units

1-4
Capacity Cooling kW 10,60

Heating kW 12,00

Water heating kW 4,2
Energyefficiency Cooling (SEER) kW/kW 7,2

Heating (SCOP)  kW/kW 4,2

Water heating (SCOP)  kW/kW 3,43
Power supply
220-240V/50Hz/1~
Air flow rate
m3/h  5800
Sound pressure level
dB (A)  60
Sound pressure level heat water supply
dB (A)  56
Water range temperature
°C  35-55
Heat water consumption
kg 0,92
Weight   (net/gross)
kg 72.5/85.5
Refrigerant

R32
Refrigerant charge
gram/m 2,40
Refrigerant load
gram/m
20
Dimensions
mm 1020х826х427
Standard length discharge
m 40
Connection diameter gas/liquid
mm/inch  4x 6.35 / 1/4"-9.52 / 3/8"
Temperature range Cooling °C  -15~43
Temperature range Heating °C  -22~24
Maximum length of the pipeline (total pipeline length / maximum distance to the indoor unit)
m 80/25
Max height difference
m 25
