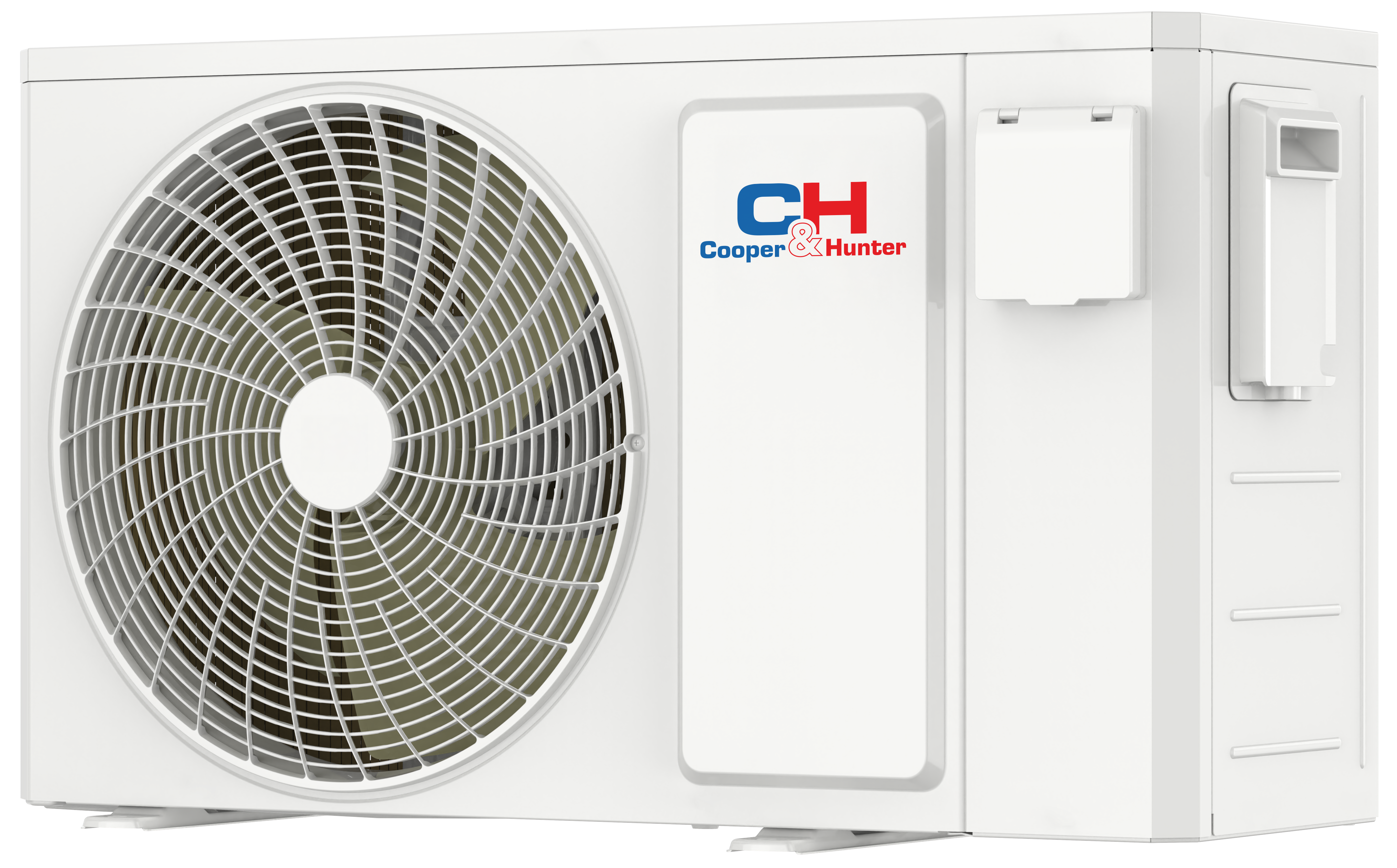

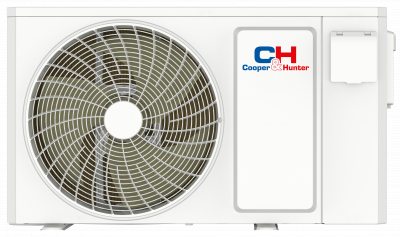

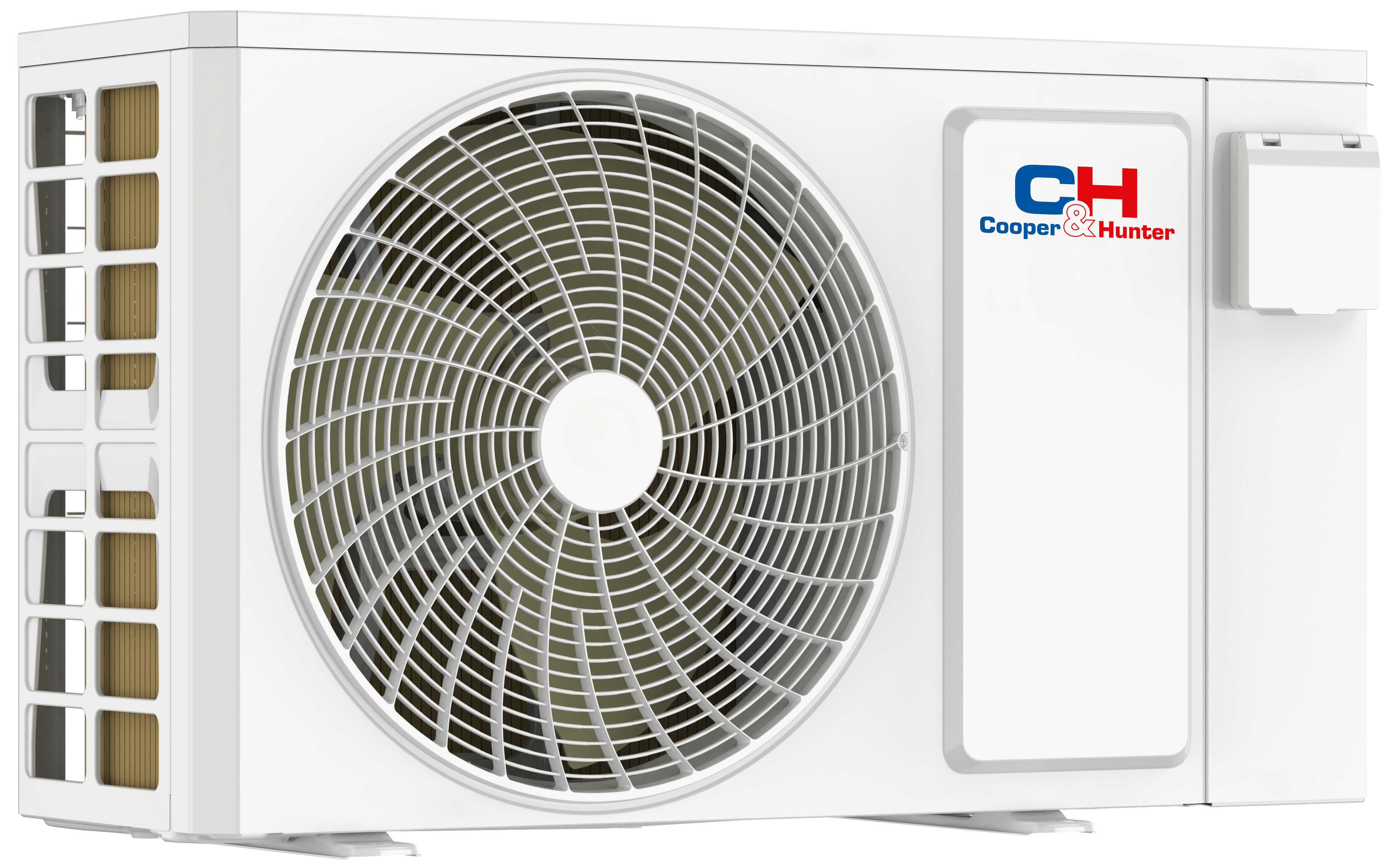

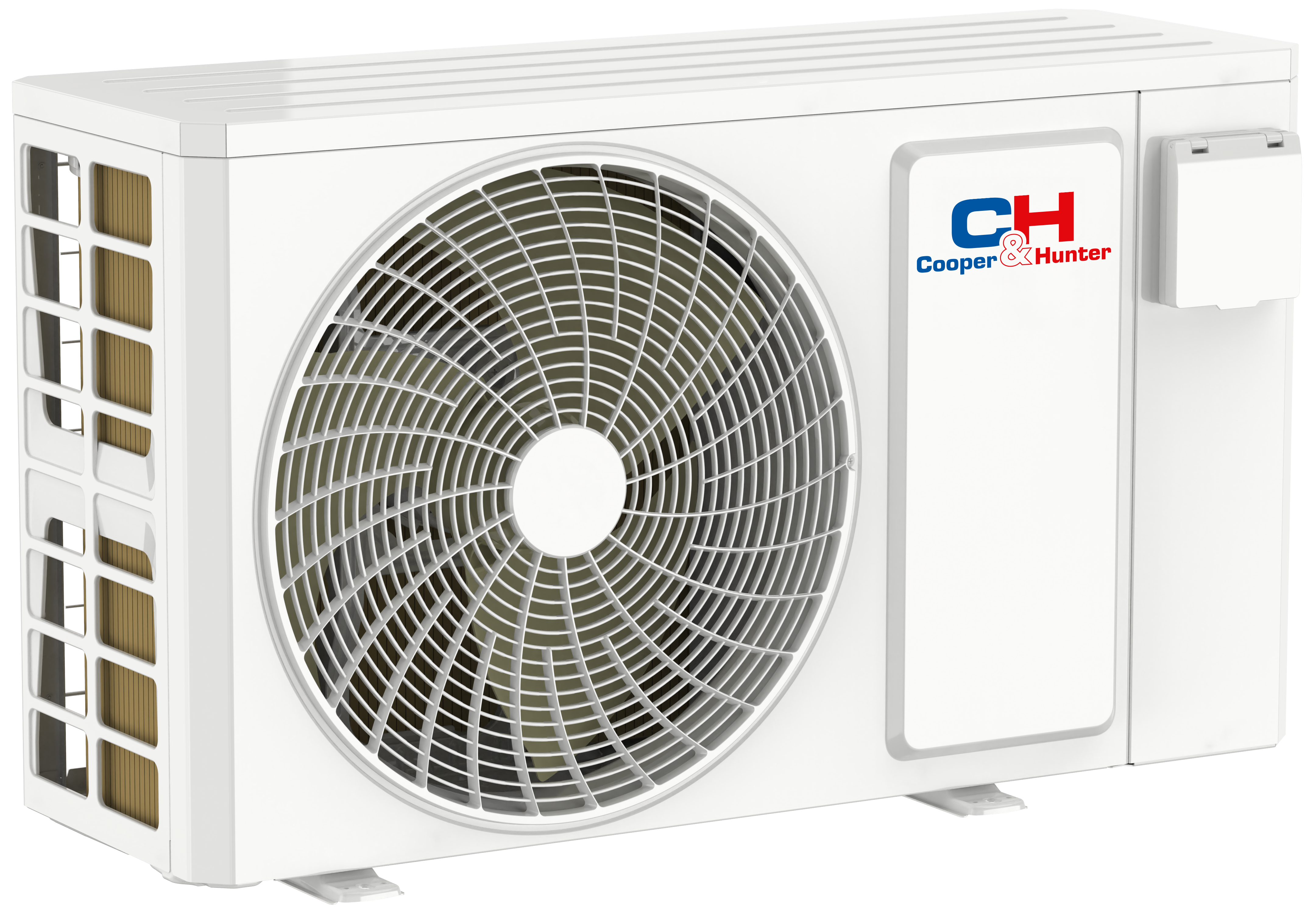

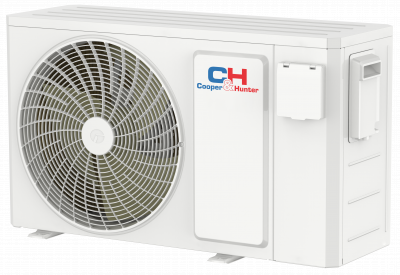

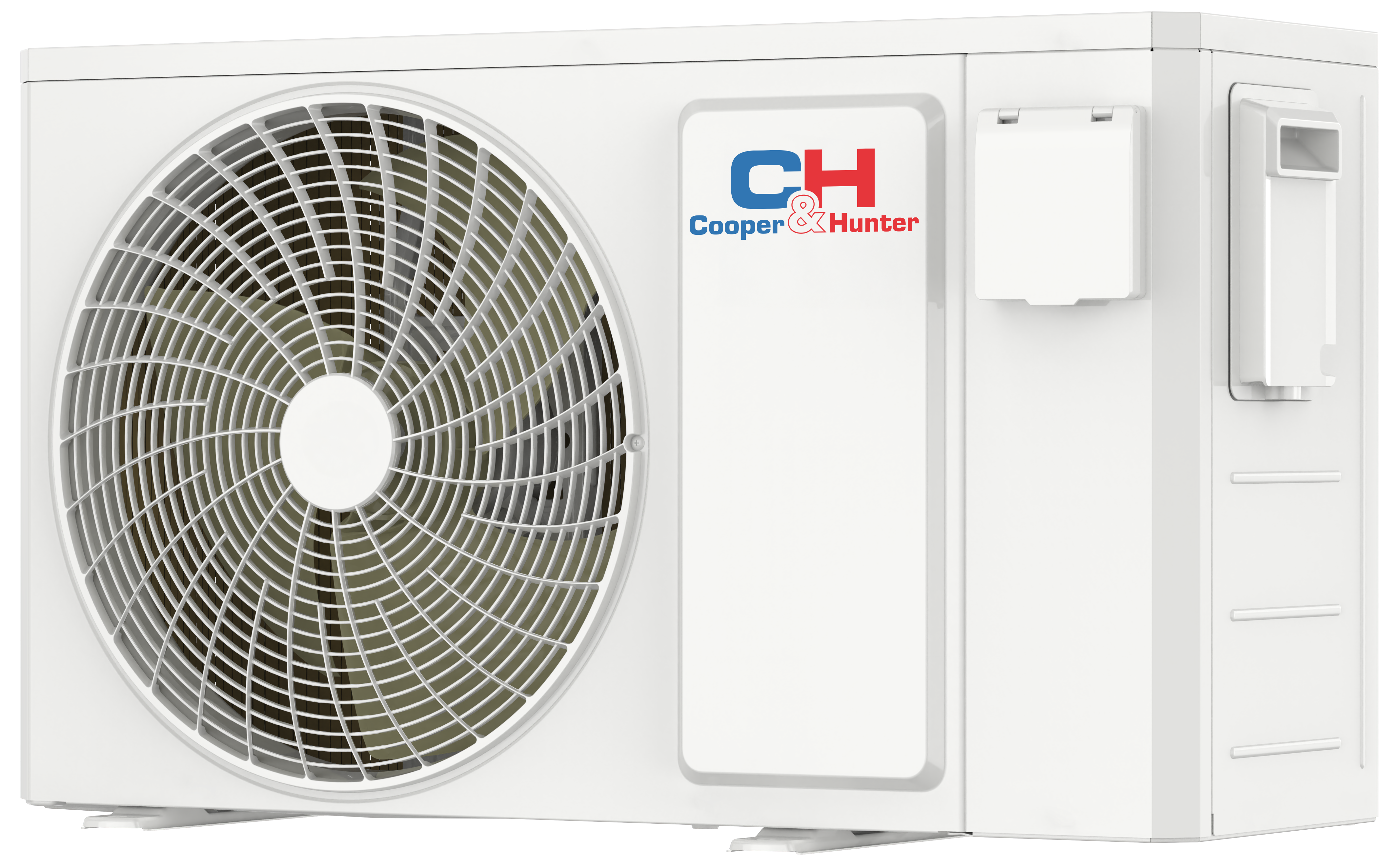

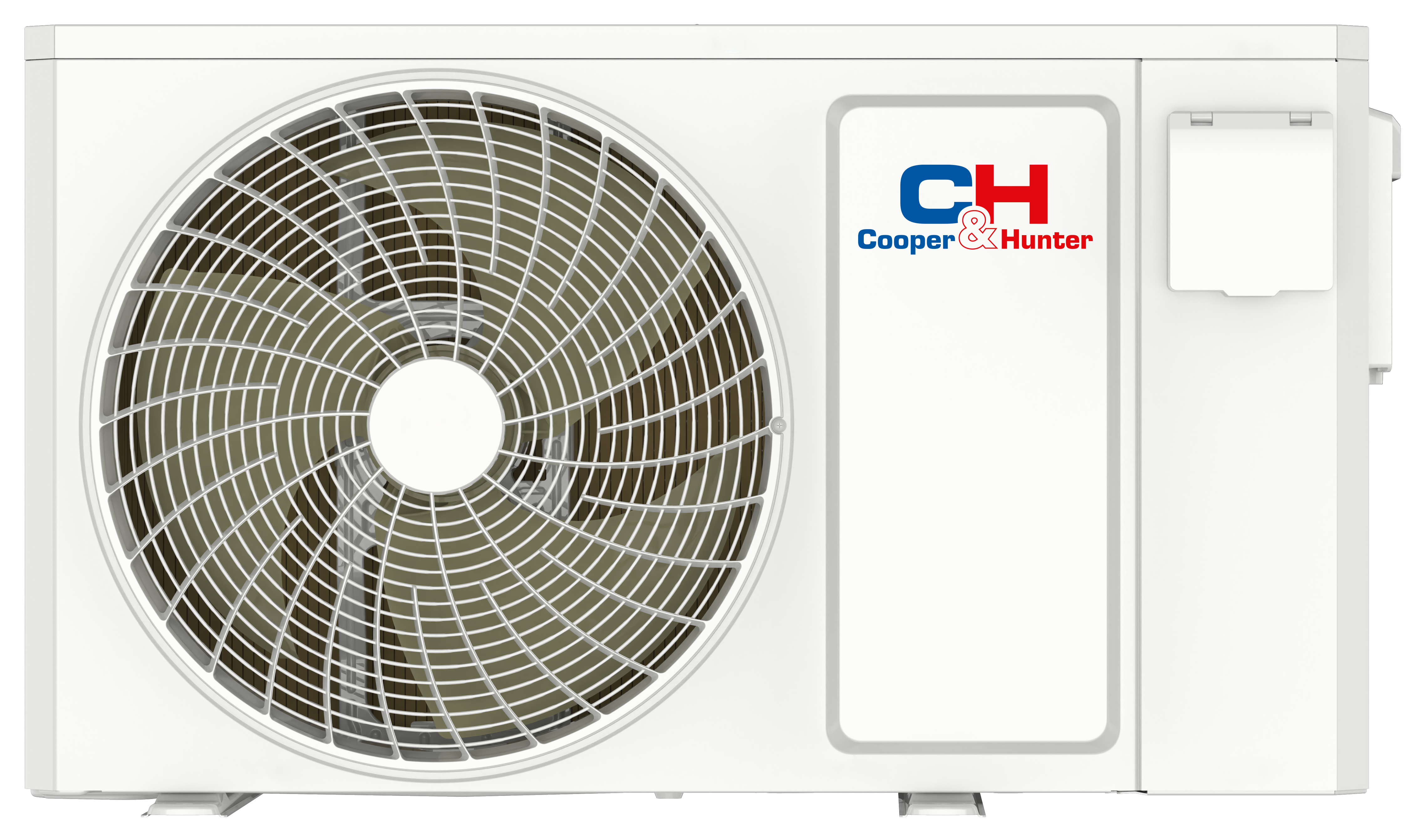

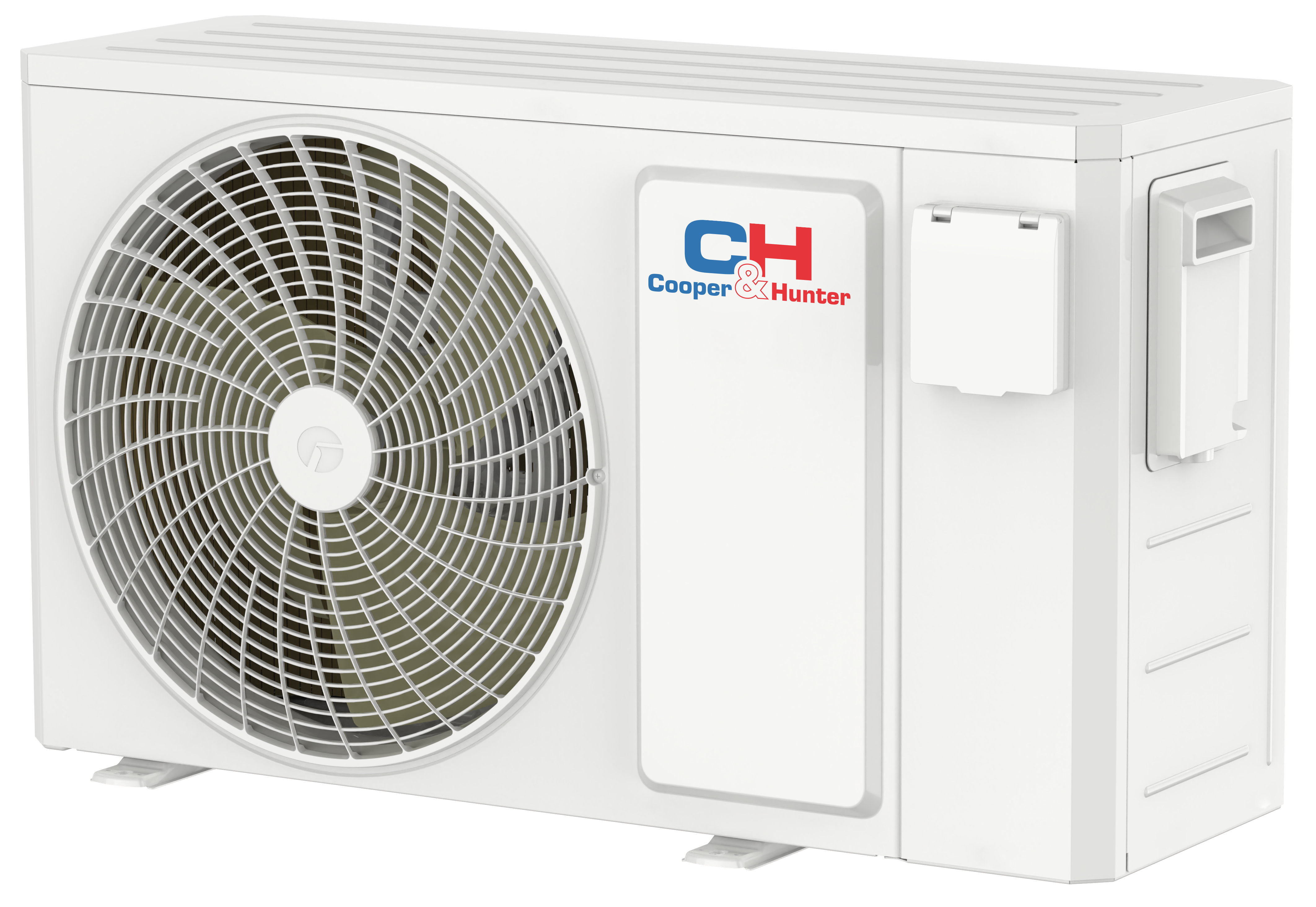

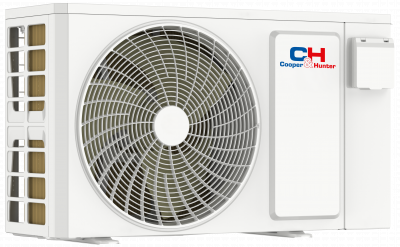

DYNAMIC CH-HP060LDIRK

Heating 11,8 kW
Find out the price

Power up to 11.8 kW

Wide range of applications

Constant water temperature of 10~40°C for swimming pools or spas

Stable operation at a supply voltage of 180~264V

Specifications

Temperature range 27°C/80%
Heating capacity, kW 2.2~11.8
Еnergy efficiency 13.0-5.8
Temperature range 15°C/70%
Heating capacity, kW 2.0~8.8
Еnergy efficiency 35°C/-, 30°C  6.3~4.5
Cooling capacity, kW  4,3
Еnergy efficiency 3,2
Power consumption maximum 2,5
Current rate max 11
Waterflow capacity m3/h  3,8
Hydraulic resistance kPa 5
Noise level dB(A)  52
Dimensions (W×D×H) mm  980×376×554
Weight net kg 43
Refrigerant R32
Power supply 220-240 ~ 50/60Hz
Pool volume m3 60 95 60
