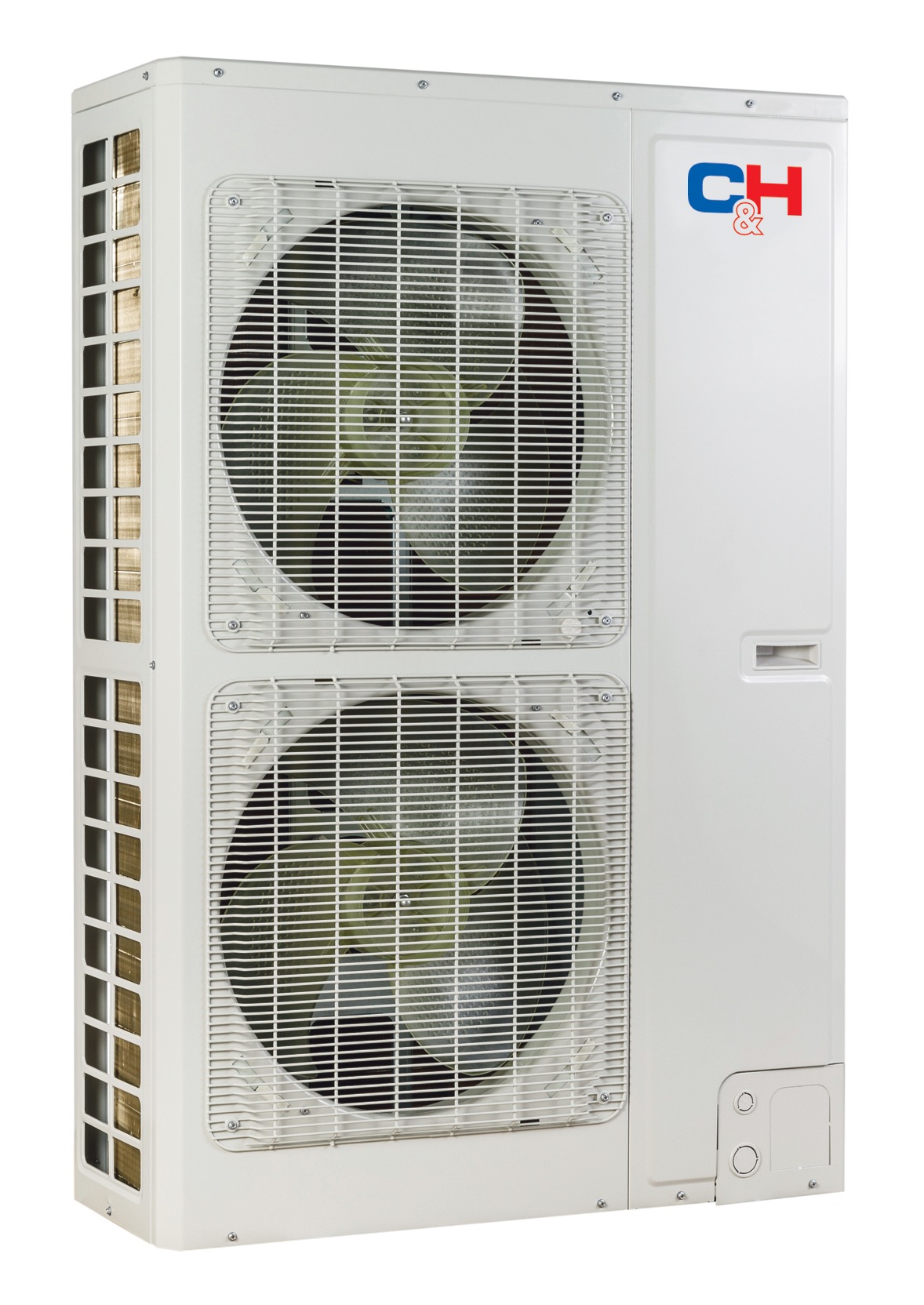

CHV Solar Mini CHV-PV140NK

C&H Image
C&H Image
cooling 14 kW
Heating 16 kW
Find out the price

Photovoltaic power generation system is the power generation element in Photovoltaic Direct-driven Inverter Multi VRF System. The clean energy provided by this power generation system will supply power to the main unit and deliver residual power to the grid through converter.

Specifications

Cooling capacity kW 14
Max. heating capacity kW 16
SEER(duct) kW/kW 6.55
SEER(cassette) kW/kW 6.64
SCOP(duct) kW/kW 4.22
SCOP(cassette) kW/kW 3.77
Max. power input kW 6.5
Max. connected IDU qty 8
Sound power level dB(A) 75
Refrigerant charge volume  kg R410A/3.3
Supply power ~ 220-240Vac/50Hz/1Ph
Unit Dimensions (WxDxH)  mm 900×340×1345
Connection pipe Gas mm Ø 15.9
Connection pipe Liquid mm Ø 9.52
Net weight kg 124
Gross weight weight kg 135
