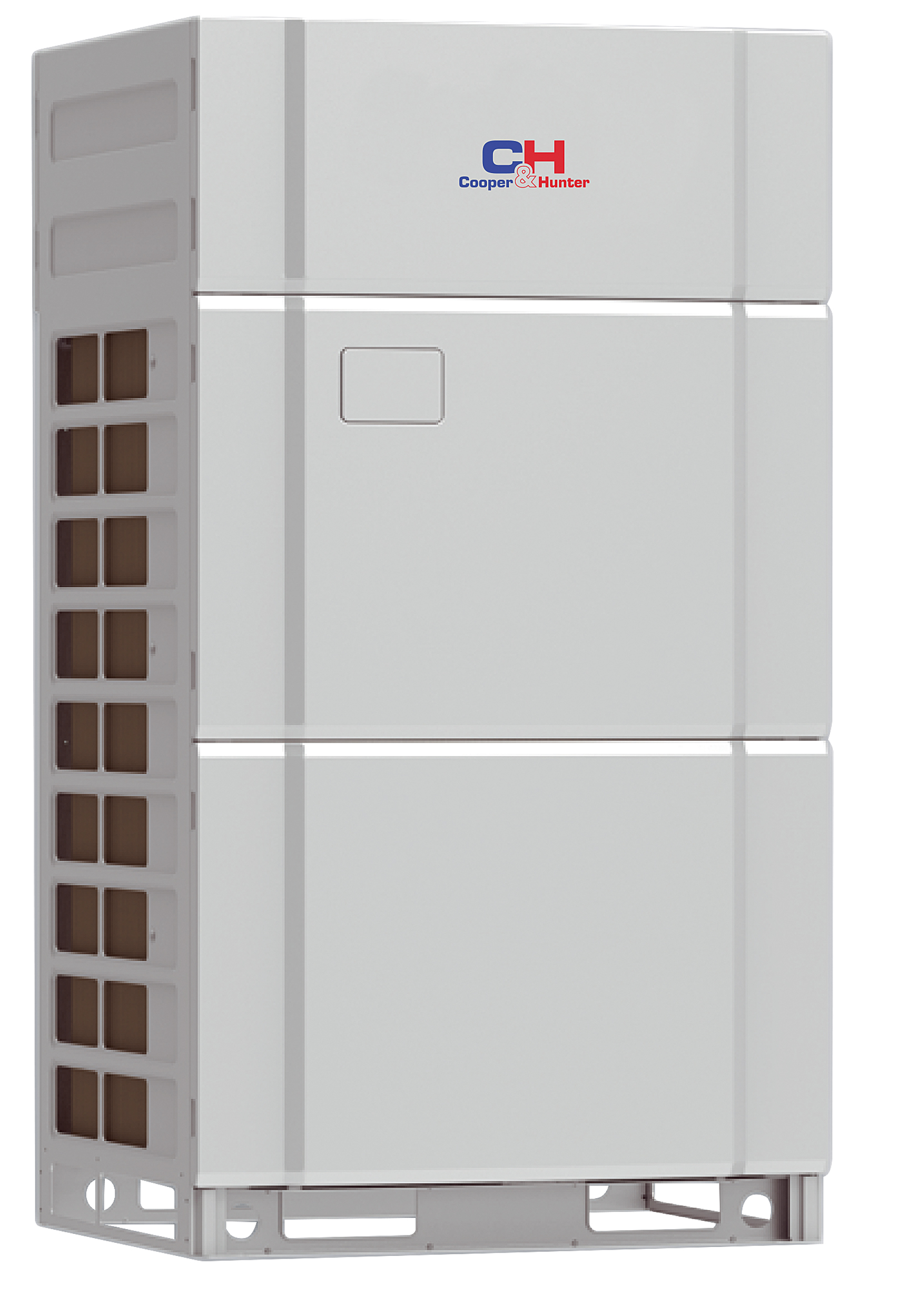

CHV6 CHV6-224NMX


cooling 22,40 kW
Heating 25,00 kW
Find out the price

  • Capacity to connect up to 100 indoor units
  • Increased power range from 22.4 to 68 kW
  • Distributed remote central control system
  • Control via protocols: modbus\KNS\BACNET\modbus mini
  • Intelligent billing system

Specifications

Parameter Розміріність CHV6-224NMX
Cooling capacity кВт 22,40
Heating capacity кВт 25,00
Maximum power consumption  кВт 12,87
SEER кВт 7,70
SCOP кВт 5,51
Refrigerant type - R410A
Maximum current  А 23,00
Power supply parameters - ~380-415V/50Hz/3ph
Dimensions (WxDxH)    мм 930x775x1690
Net weight кг 220
Sound pressure level дБ(А) 56
Water pipe diameter  мм 9,52
Freon pipe diameter мм 19,05
External static pressure fan unit (in case heat needs to be removed from the unit) Па 0-110
