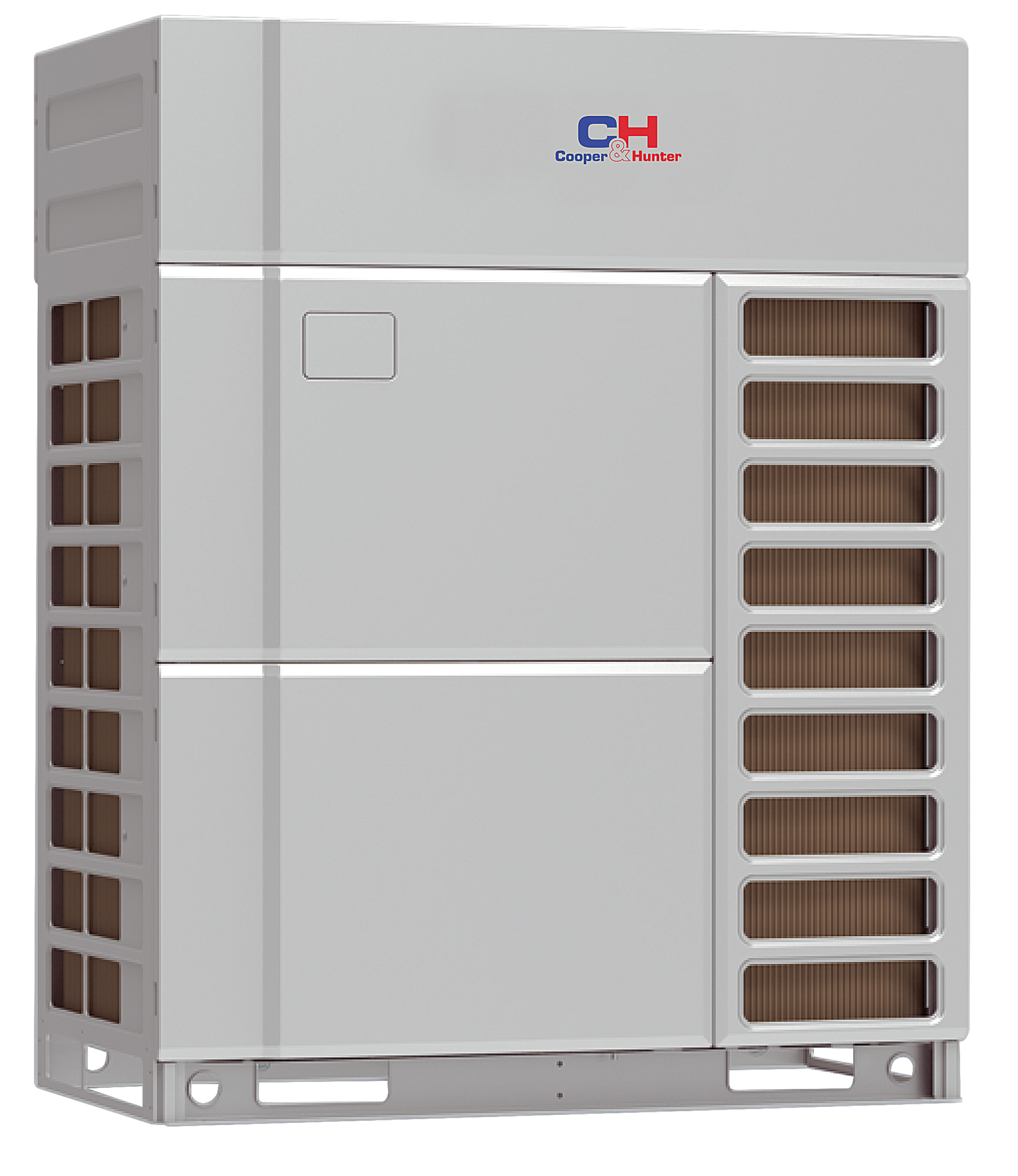

CHV6 CHV6-450NMX

cooling 45,00 kW
Heating 50,00 kW
Find out the price

  • Capacity to connect up to 100 indoor units
  • Increased power range from 22.4 to 68 kW
  • Distributed remote central control system
  • Control via protocols: modbus\KNS\BACNET\modbus mini
  • Intelligent billing system

Specifications

Parameter CHV6-450NMX
Cooling capacity  45,00
Heating capacity 50,00
Maximum power consumption 22,00
SEER 6,60
SCOP 5,15
Refrigerant type R410A
Maximum current 39,30
Power supply parameters  ~380-415V/50Hz/3ph
Dimensions (WxDxH) 1340х775х1690
Net weight 300
Sound pressure level  60
Water pipe diameter  12,7
Freon pipe diameter 28,6
External static pressure fan unit (in case heat needs to be removed from the unit) 0-110
