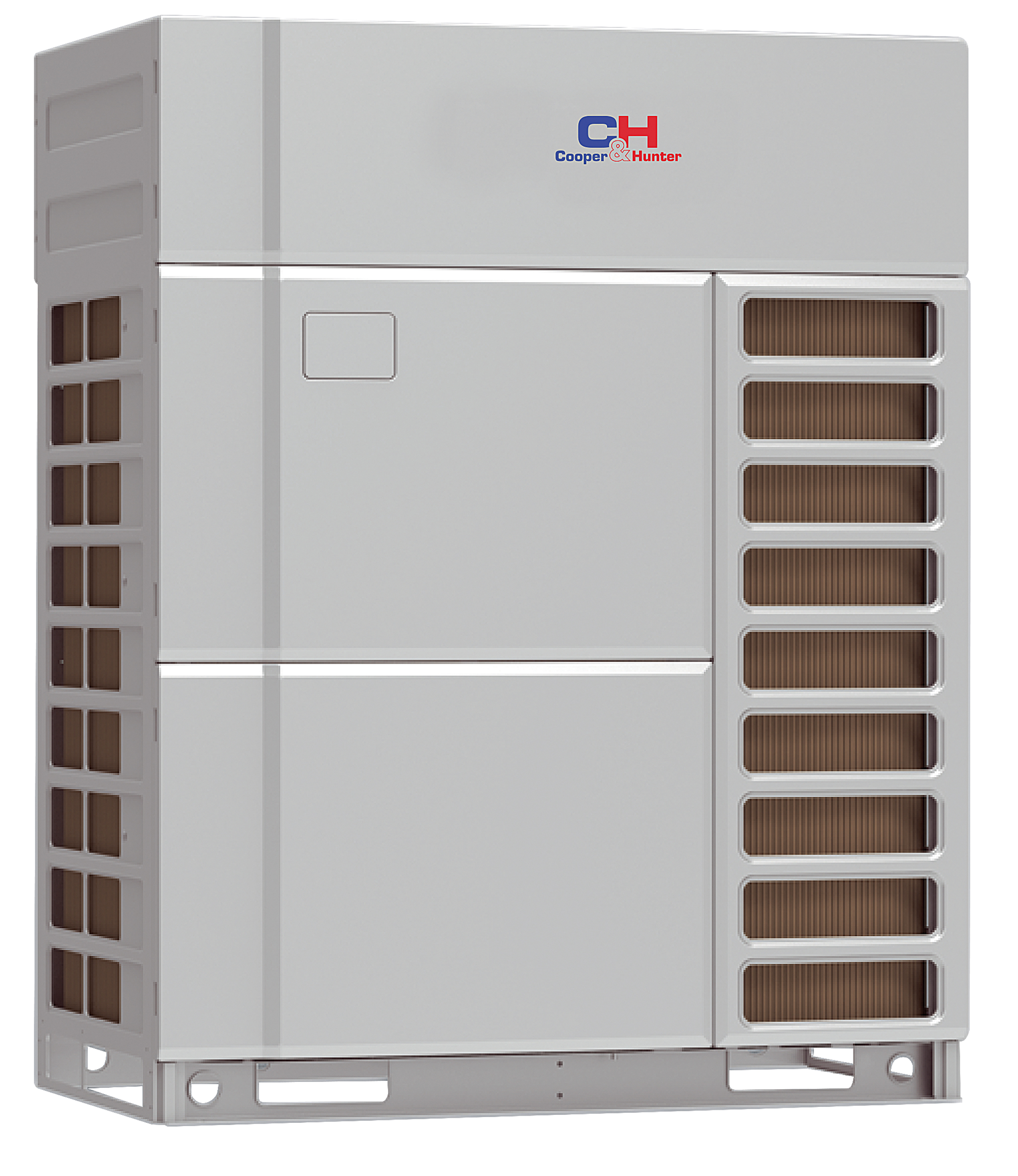

CHV6 CHV6-504NMX

cooling 50,40 kW
Heating 56,50 kW
Find out the price

  • Capacity to connect up to 100 indoor units
  • Increased power range from 22.4 to 68 kW
  • Distributed remote central control system
  • Control via protocols: modbus\KNS\BACNET\modbus mini
  • Intelligent billing system

Specifications

Parameter CHV6-504NMX
Cooling capacity   50,40
Heating capacity 56,50
Maximum power consumption 26,30
SEER 6,95
SCOP 4,13
Refrigerant type  R410A
Maximum current 47,00
Power supply parameters ~380-415V/50Hz/3ph
Dimensions (WxDxH)  1340х775х1690
Net weight 350
Sound pressure level 61
Water pipe diameter  15,9
Freon pipe diameter  28,6
External static pressure fan unit (in case heat needs to be removed from the unit)  0-110
