Model line
HR6B1NK...HR6BS8NK

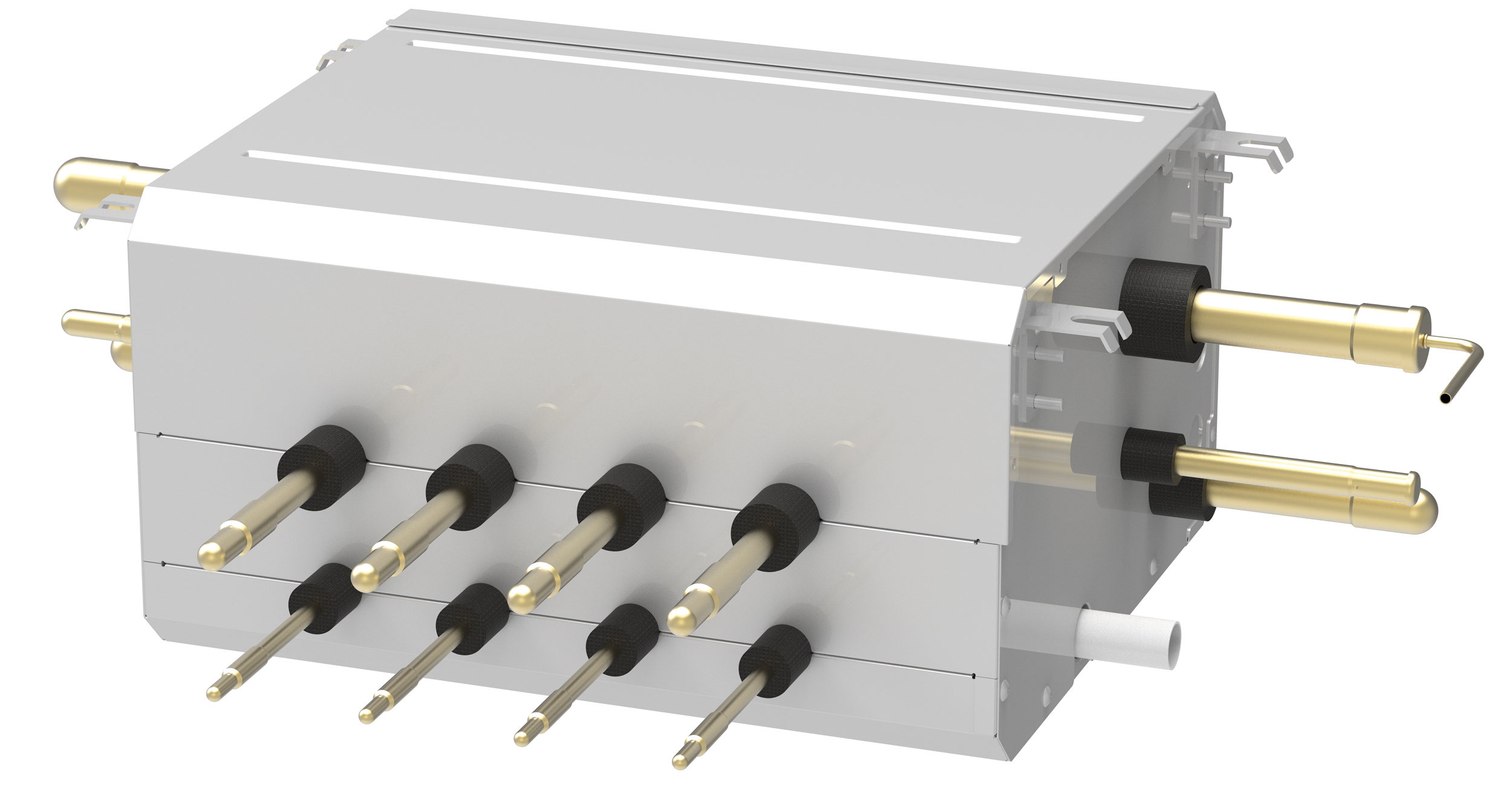

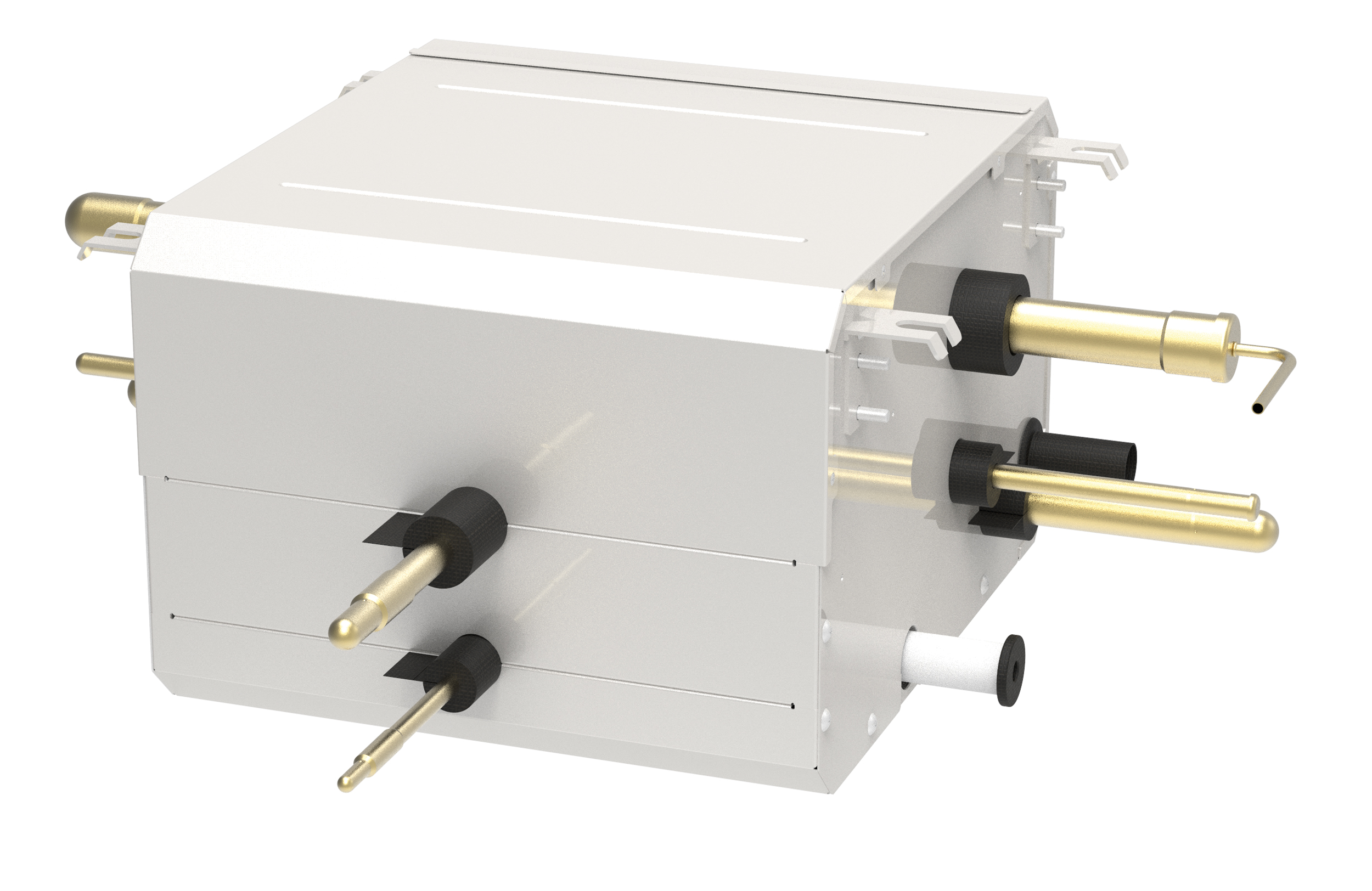

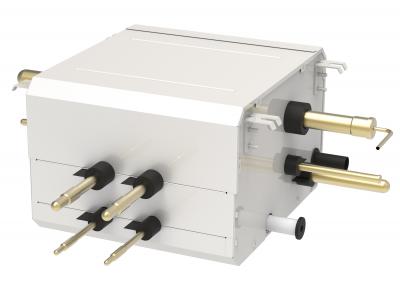

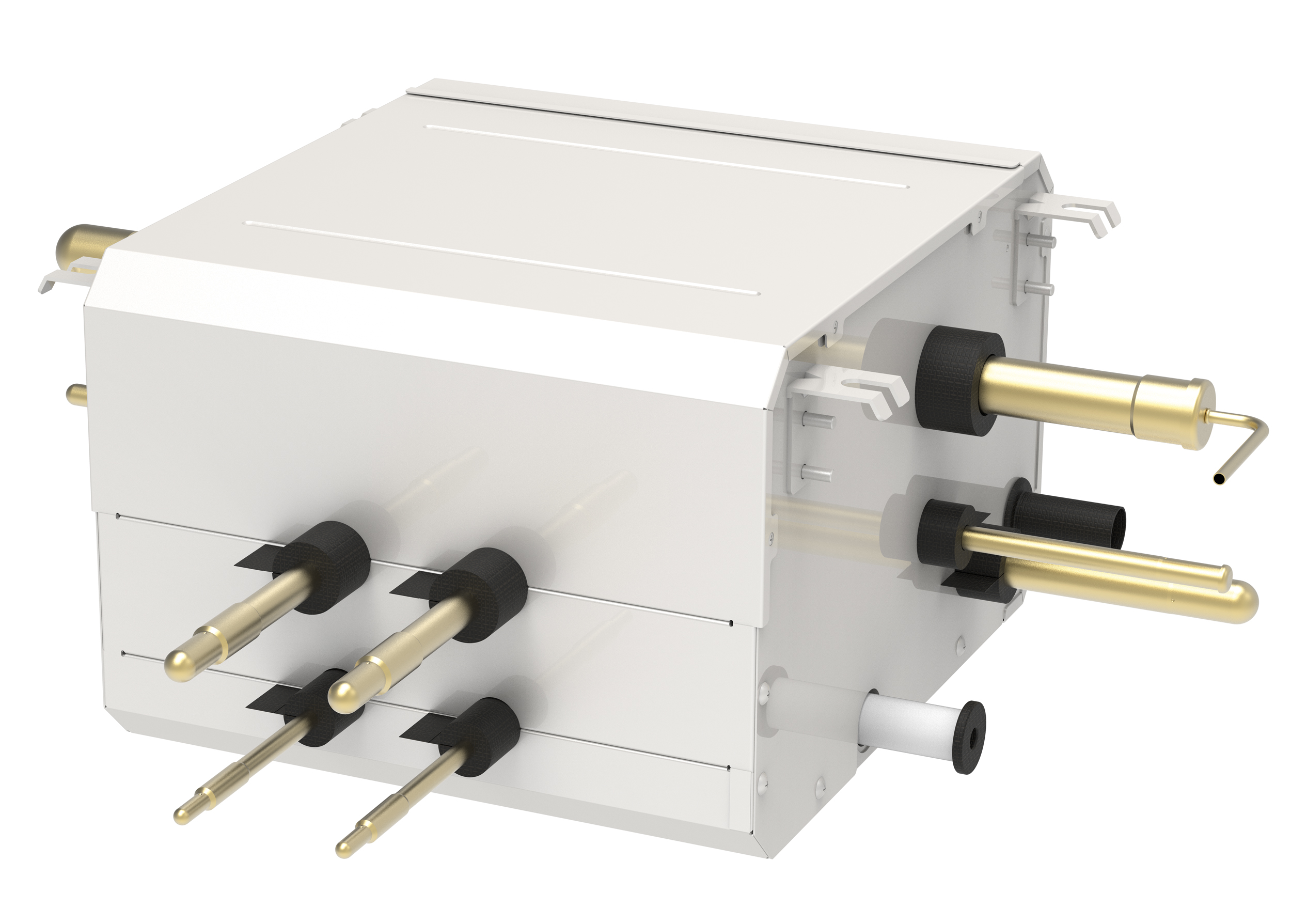

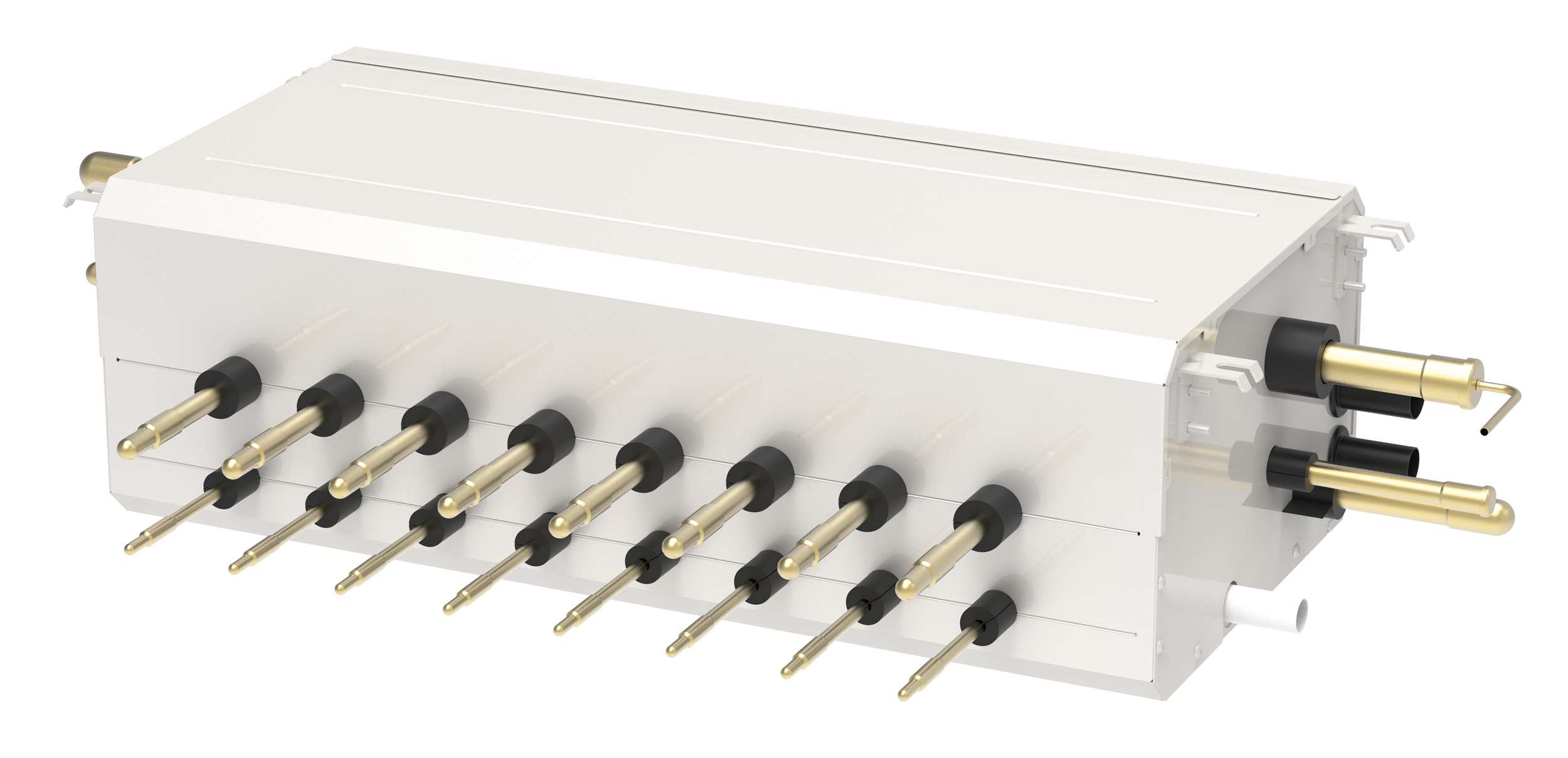

CHV6 HR mode matching units HR6B1NK...HR6BS8NK

C&H Image
C&H Image
C&H Image
C&H Image
C&H Image
C&H Image
C&H Image
C&H Image
cooling 16..85 kW
Find out the price

Specifications

Additionaly Notice Item. HR6B1NK HR6BS2NK HR6BS4NK HR6BS8NK
Number of branches

pcs 1 2 4 8
Maximum number of connected indoor units
Per branch pcs 8 8 8 8
Maximum number of connected indoor units
Overall pcs 8 16 32 64
Maximum cooling capacity of connected indoor units
One branch kW 16 16 16 16
Maximum cooling capacity of connected indoor units
Overall kW 16 28 45 85
Power supply

V/~/Hz 220-240/1/50 220-240/1/50 220-240/1/50 220-240/1/50
Pipe diameter  ODU Liquid mm Φ9.52 Φ9.52 Φ12.7 Φ15.9
Pipe diameter
High pressure mm Φ19.05 Φ19.05 Φ22.2 Φ22.2
Pipe diameter
Low pressure mm Φ22.2 Φ22.2 Φ28.6 Φ28.6
Pipe diameter  IDU Liquid mm Φ6.35/9.52 Φ6.35/9.52 Φ6.35/9.52 Φ6.35/9.52
Pipe diameter  IDU GAS mm Φ6.35/9.52 Φ6.35/9.52 Φ12.7/15.9 Φ12.7/15.9
Dimensions (W×D×H)

mm 340×388×250 340×388×250 460×388×250 784×388×250
Net/gross weight

kg 12/17.5 14.5/20.5 20.6/27 33/42
